S47517 (Rivian) | IMS EP QC Checklist

Enter Serial Number *

Enter Job Number *

Customer (AUTO)

Part Number (AUTO)

Description (AUTO)

Inner Cabinet Checklist

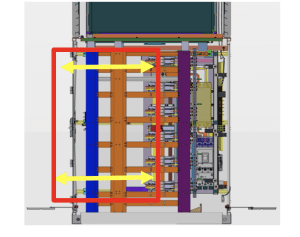

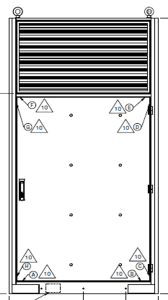

1. Critical Surfaces which need to be parallel to each other (100% / Fixture) *

Accept
Reject
N/A

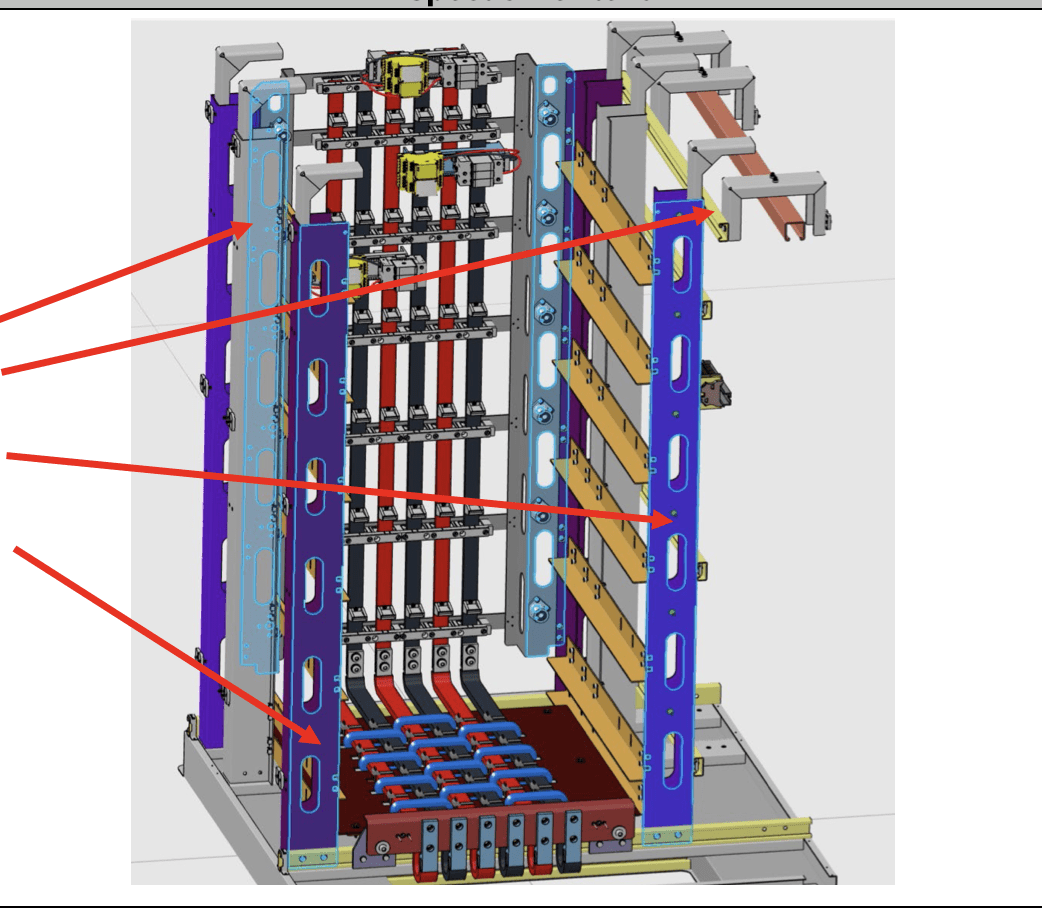

PEM Cage needs to form a perfect rectangle which is perpendicular to the base - to ensure that PEM modules will have no issues. Will be verified with assembly fixture at IMS (100% / Inspection Fixture)

2.

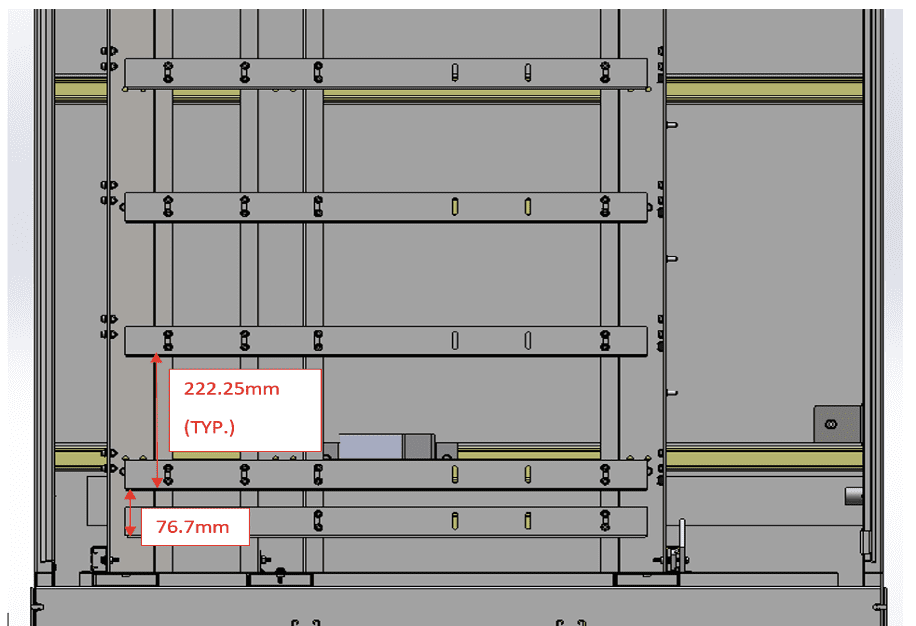

2. Center Distance (1 of 5x) - 222.25 (100% / Fixture) *

Accept
Reject
N/A

2. Center Distance (2 of 5x) - 222.25 (100% / Fixture) *

Accept
Reject
N/A

2. Center Distance (3 of 5x) - 222.25 (100% / Fixture) *

Accept
Reject
N/A

2. Center Distance (4 of 5x) - 222.25 (100% / Fixture) *

Accept
Reject
N/A

2. Center Distance (5 of 5x) - 222.25 (100% / Fixture) *

Accept
Reject
N/A

2. Center Distance - 76.7 (100% / Fixture) *

Accept
Reject
N/A

3.

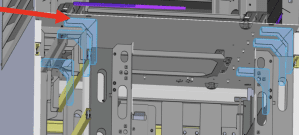

3. Ensure that all L shaped bulkhead support brackets are contacting the bulkhead panel. (100% / Visual) *

Accept
Reject
N/A

Page 2

1. Post Paint Inspection - Verify all sides are free from excessive dents and blemishes on the paint (100% / Visual). *

Accept
Reject
N/A

2. Masking - 2 rectangular masked areas inside frame by door latch side. Top and bottom on both sides. Total 4 masked areas (100% / Visual). *

Accept
Reject
N/A

3. Masking - Verify all ground studs are secure and free of paint. (Doors 2x, inside bottom of frame 2x, sled 1x, middle shelf 1x and top of frame 1x). (100% / Visual) *

Accept
Reject
N/A

4. Masking - Inner black frame has 7 masked post visible from front side. (100% / Visual) *

Accept
Reject
N/A

5. Insulation Verification - Verify all insulation applied per WI. (100% / Visual) *

Accept
Reject
N/A

6. Trolley support assy - Verify trolley support location: WI page 20 gage 9-02409, WI page 24 gage 9-02398. Dimension: 4.27" & 7.13" Ref (100% / Gage) *

Accept
Reject
N/A

7. Cam latch assy - Verify rear and front cam latch orientation correct. (100% / Visual) *

Accept
Reject
N/A

8. Mounting channel assy - Verify all nut retainers and cage nuts (M6) present per WI (100% / Visual) *

Accept
Reject
N/A

9. Pem Cage Assembly - Check spacing between chassis guides. Check top, middle and bottom. (100% / Gage: 9-02631) *

Accept
Reject
N/A

10. Black Bracket assy - Verify black bracket installed 2x before louver panel installed. (100% / Visual) *

Accept
Reject
N/A

11. Door Assembly - Verify door assembly front and back. Record gap readings on sheet. (100% / Shim Gage) *

Accept
Reject
N/A

12. Door Closure - Verify front and back door closes properly. (100% / Visual) *

Accept
Reject
N/A

13. Mounting channel assy - Verify location of mounting channel with fixture. WI page 38 (100% / Gage: 9-02571 *

Accept
Reject
N/A

14. Hardware paint free - Verify hardware free of paint. (100% / Visual / Gage) *

Accept
Reject
N/A

15. Door Panel - Verify loose or missing Stand Off's (100% / Visual) *

Accept
Reject
N/A

16. Door Function - Verify door opening square and not binding when closing. (100% / Visual / Gage: 9-02601) *

Accept
Reject
N/A

17. Door Switch - Verify door switch function on front and rear door using multimeter gage and door switch. (100% / Multimeter gage) *

Accept
Reject
N/A

18. Front view, door open , inside of cabinet (Upload Pictures)
