LST Main Panel | IMS EP QC Checklist

Enter Serial Number *

Enter Job Number *

Customer (AUTO)

Part Number (AUTO)

Description (AUTO)

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 1 / 16

1-1. Inspection for Parts Arrangement

LST Main Panel Inspection Sheet - Front Side

Rev. 7, page 2 / 16

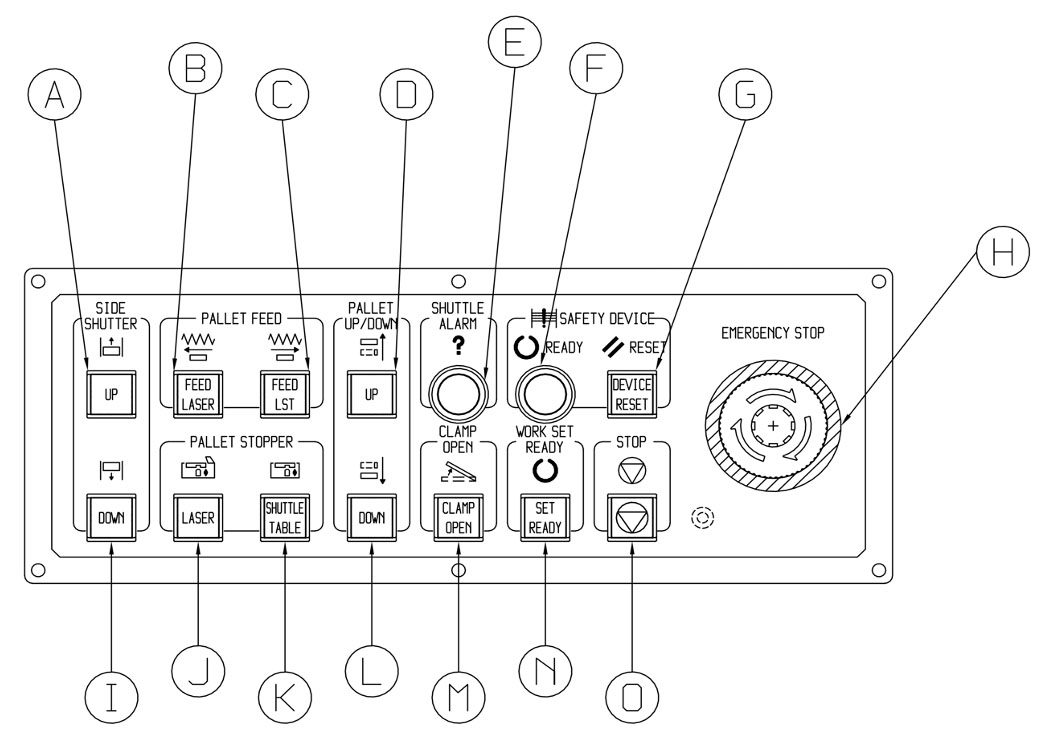

Term.# A. Check Nameplate - UP [=3!M38=] *

Term.# A. Check Lamp - WHITE [=3!R38=] *

Term.# A. Check that all labels are in the correct position. [=3!AF38=] *

Term.# B. Check Nameplate - FEED LASER [=3!M40=] *

Term.# B. Check Lamp - WHITE [=3!R40=] *

Term.# B. Check that panel is free of scratches in the paint and silk screening. [=3!AF40=] *

Term.# C. Check Nameplate - FEED LST [=3!M42=] *

Term.# C. Check Lamp - WHITE [=3!R42=] *

Term.# C. Check that all words are clear and readable. [=3!AF42=] *

Term.# D. Check Nameplate - UP [=3!M44=] *

Term.# D. Check Lamp - WHITE [=3!R44=] *

Term.# D. Check for defects visible from 1 foot away, not otherwise specified. [=3!AF44=] *

Term.# E. Check Nameplate - N/A [=3!M46=]

Term.# E. Check Lamp - RED [=3!R46=] *

Term.# F. Check Nameplate - N/A [=3!M48=]

Term.# F. Check Lamp - GREEN [=3!R48=] *

Term.# G. Check Nameplate - DEVICE RESET [=3!M50=] *

Term.# G. Check Lamp - BLUE [=3!R50=] *

Term.# H. Check Nameplate - N/A [=3!M52=]

Term.# H. Check Lamp - N/A [=3!R52=]

Term.# I. Check Nameplate - DOWN [=3!M54=] *

Term.# I. Check Lamp - WHITE [=3!R54=] *

Term.# J. Check Nameplate - LASER [=3!M56=] *

Term.# J. Check Lamp - WHITE [=3!R56=] *

Term.# K. Check Nameplate - SHUTTLE TABLE [=3!M58=] *

Term.# K. Check Lamp - WHITE [=3!R58=] *

Term.# L. Check Nameplate - DOWN [=3!M60=] *

Term.# L. Check Lamp - WHITE [=3!R60=] *

Term.# M. Check Nameplate - CLAMP OPEN [=3!M62=] *

Term.# M. Check Lamp - N/A

Term.# N. Check Nameplate - SET READY [=3!M64=] *

Term.# N. Check Lamp - Green [=3!R64=] *

Term.# O. Check Nameplate

Term.# O. Check Nameplate [=3!M66=] *

Term.# O. Check Lamp - WHITE [=3!R66=] *

LST Main Panel Inspection Sheet - Back Side

Rev. 7, page 3 / 16

#1 Check Specification [=3!U73=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#1 Device Label [=3!AA73=] *

HL711
SB711

#2 Check Specification [=3!U75=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#2 Device Label [=3!AA75=] *

HL703
SB703

#3 Check Specification [=3!U77=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#3 Device Label [=3!AA77=] *

HL704
SB704

#4 Check Specification [=3!U79=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#4 Device Label [=3!AA79=] *

HL701
SB701

#5 Check Specification [=3!U81=] *

SW - PL DF16F0L-E3R [tri1]
Socket AR6S690-LX

#5 Device Label [=3!AA81=] *

HL753

#6 Check Specification [=3!U83=] *

SW - PL DF16F0L-E3G
Soket AR6S690-LX

#6 Device Label [=3!AA83=] *

HL754

#7 Check Specification [=3!U85=] *

SW - PL AF16F0M-C1E3S [tri1]
Soket AR6S690-L2

#7 Device Label [=3!AA85=] *

HL752
SB752

#8 Check Specification [=3!U87=] *

EMG-SW AM22V0E-02R

#8 Device Label [=3!AA87=] *

SB750

#9 Check Specification [=3!U89=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#9 Device Label [=3!AA89=] *

HL710
√

#10 Check Specification [=3!U91=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#10 Device Label [=3!AA91=] *

HL705
SB705

#11 Check Specification [=3!U93=] *

SW - PL AF16F0M-C1E3W [tri1]
Soket AR6S690-L2

#11 Device Label [=3!AA93=] *

HL706
SB706

#12 Check Specification [=3!U95=] *

SW - PL AF16F0M-C1E3W
Soket AR6S690-L2

#12 Device Label [=3!AA95=] *

HL702
SB702

#13 Check Specification [=3!U97=] *

Panel Plug AF6Y851-B

#13 Device Label - N/A *

[tri1]

#14 Check Specification [=3!U99=] *

SW - PL AF16F0M-C1E3G [tri1]
Soket AR6S690-L2

#14 Device Label [=3!AA99=] *

HL700
SB700

#15 Check Specification [=3!U101=] *

SW - PL AR16F5M-C1E3W
Soket AR6S690-L2

#15 Device Label [=3!AA101=] *

HL751
SB751

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 4 / 16

1-2. Inspection for wiring Lamp and Switch

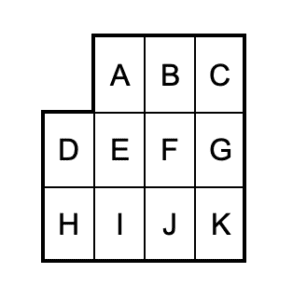

HL752 / SB752

Term.# A Check Label - N/A [=4!M9=]

Term.# B Check Label - N/A [=4!M10=]

Term.# C Check Label - N2(C10) [=4!M11=] *

Term.# D Check Label - HL752 [=4!M12=] *

Term.# E Check Label - SB752 [=4!M13=] *

Term.# F Check Label - N/A [=4!M14=]

Term.# G Check Label - N2(C11) [=4!M15=] *

Term.# H Check Label - P2(C9) [=4!M16=] *

Term.# I Check Label - P2(C8) [=4!M17=] *

Term.# J Check Label - N/A [=4!M18=]

Term.# K Check Label - N/A [=4!M19=]

HL753

Term.# A Check Label - N/A [=4!M24=]

Term.# B Check Label - N/A [=4!M25=]

Term.# C Check Label - N2(C9) [=4!M26=] *

Term.# D Check Label - HL753 [=4!M27=] *

Term.# E Check Label - N/A [=4!M28=]

Term.# F Check Label - N/A [=4!M29=]

Term.# G Check Label - N2(C8) [=4!M30=] *

Term.# H Check Label - N/A [=4!M31=]

Term.# I Check Label - N/A [=4!M32=]

Term.# J Check Label - N/A [=4!M33=]

Term.# K Check Label - N/A [=4!M34=]

HL754

Term.# A Check Label - N/A [=4!AE9=]

Term.# B Check Label - N/A [=4!AE10=]

Term.# C Check Label - N2(C10) [=4!AE11=] *

Term.# D Check Label - HL754 [=4!AE12=] *

Term.# E Check Label - N/A [=4!AE13=]

Term.# F Check Label - N/A [=4!AE14=]

Term.# G Check Label - N2(C9) [=4!AE15=] *

Term.# H Check Label - N/A [=4!AE16=]

Term.# I Check Label - N/A [=4!AE17=]

Term.# J Check Label - N/A [=4!AE18=]

Term.# K Check Label - N/A [=4!AE19=]

HL701 / SB701

Term.# A Check Label - N/A [=4!AE24=]

Term.# B Check Label - N/A [=4!AE25=]

Term.# C Check Label - N2(C8) [=4!AE26=] *

Term.# D Check Label - HL701 [=4!AE27=] *

Term.# E Check Label - SB701 [=4!AE28=] *

Term.# F Check Label - N/A [=4!AE29=]

Term.# G Check Label - N2(C7) [=4!AE30=] *

Term.# H Check Label - P2(C8) [=4!AE31=] *

Term.# I Check Label - P2(C7) [=4!AE32=] *

Term.# J Check Label - N/A [=4!AE33=]

Term.# K Check Label - N/A [=4!AE34=]

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 5 / 16

HL704 / SB704

Term.# A Check Label - N/A [=4!M44=]

Term.# B Check Label - N/A [=4!M45=]

Term.# C Check Label - N2(C7) [=4!M46=] *

Term.# D Check Label - HL704 [=4!M47=] *

Term.# E Check Label - SB704 [=4!M48=] *

Term.# F Check Label - N/A [=4!M49=]

Term.# G Check Label - N2(C6) [=4!M50=] *

Term.# H Check Label - P2(C7) [=4!M51=] *

Term.# I Check Label - P2(C6) [=4!M52=] *

Term.# J Check Label - N/A [=4!M53=]

Term.# K Check Label - N/A [=4!M54=]

HL711 / SB711

Term.# A Check Label - N/A [=4!M59=]

Term.# B Check Label - N/A [=4!M60=]

Term.# C Check Label - N2(C5) [=4!M61=] *

Term.# D Check Label - HL711 [=4!M62=] *

Term.# E Check Label - SB711 [=4!M63=] *

Term.# F Check Label - N/A [=4!M64=]

Term.# G Check Label - N2(C4) [=4!M65=] *

Term.# H Check Label - P2(C5) [=4!M66=] *

Term.# I Check Label - P2(C4) [=4!M67=] *

Term.# J Check Label - N/A [=4!M68=]

Term.# K Check Label - N/A [=4!M69=]

HL703 / SB703

Term.# A Check Label - N/A [=4!AE44=]

Term.# B Check Label - N/A [=4!AE45=]

Term.# C Check Label - N2(C6) [=4!AE46=] *

Term.# D Check Label - HL703 [=4!AE47=] *

Term.# E Check Label - SB703 [=4!AE48=] *

Term.# F Check Label - N/A [=4!AE49=]

Term.# G Check Label - N2(C5) [=4!AE50=] *

Term.# H Check Label - P2(C6) [=4!AE51=] *

Term.# I Check Label - P2(C5) [=4!AE52=] *

Term.# J Check Label - N/A [=4!AE53=]

Term.# K Check Label - N/A [=4!AE54=]

HL751 / SB751

Term.# A Check Label - LIN2 [=4!AE59=] *

Term.# B Check Label - N/A [=4!AE60=]

Term.# C Check Label - N2(C11) [=4!AE61=] *

Term.# D Check Label - LOU2 [=4!AE62=] *

Term.# E Check Label - N/A [=4!AE63=]

Term.# F Check Label - N/A [=4!AE64=]

Term.# G Check Label - N2(C12) [=4!AE65=] *

Term.# H Check Label - P2(C9) [=4!AE66=] *

Term.# I Check Label - P2(C10) [=4!AE67=] *

Term.# J Check Label - N/A [=4!AE68=]

Term.# K Check Label - N/A [=4!AE69=]

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 6 / 16

HL700 / SB700

Term.# A Check Label - N/A [=4!M79=]

Term.# B Check Label - N/A [=4!M80=]

Term.# C Check Label - N2(C12) [=4!M81=] *

Term.# D Check Label - HL700 [=4!M82=] *

Term.# E Check Label - SB700 [=4!M83=] *

Term.# F Check Label - N/A [=4!M84=]

Term.# G Check Label - N2(C27) [=4!M85=] *

Term.# H Check Label - P2(C10) [=4!M86=] *

Term.# I Check Label - P2(C08) [=4!M87=] *

Term.# J Check Label - N/A [=4!M88=]

Term.# K Check Label - N/A [=4!M89=]

HL702 / SB702

Term.# A Check Label - N/A [=4!M94=]

Term.# B Check Label - N/A [=4!M95=]

Term.# C Check Label - N2(C1) [=4!M96=] *

Term.# D Check Label - HL702 [=4!M97=] *

Term.# E Check Label - SB702 [=4!M98=] *

Term.# F Check Label - N/A [=4!M99=]

Term.# G Check Label - N2(26) [=4!M100=] *

Term.# H Check Label - P2(07) [=4!M101=] *

Term.# I Check Label - P2(C1) [=4!M102=] *

Term.# J Check Label - N/A [=4!M103=]

Term.# K Check Label - N/A [=4!M104=]

HL706 / SB706

Term.# A Check Label - N/A [=4!AE94=]

Term.# B Check Label - N/A [=4!AE95=]

Term.# C Check Label - N2(C2) [=4!AE96=] *

Term.# D Check Label - HL706 [=4!AE97=] *

Term.# E Check Label - SB706 [=4!AE98=] *

Term.# F Check Label - N/A [=4!AE99=]

Term.# G Check Label - N2(C1) [=4!AE100=] *

Term.# H Check Label - P2(C1) [=4!AE101=] *

Term.# I Check Label - P2(C2) [=4!AE102=] *

Term.# J Check Label - N/A [=4!AE103=]

Term.# K Check Label - N/A [=4!AE104=]

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 7 / 16

HL705 / SB705

Term.# A Check Label - N/A [=4!M114=]

Term.# B Check Label - N/A [=4!M115=]

Term.# C Check Label - N2(C3) [=4!M116=] *

Term.# D Check Label - HL705 [=4!M117=] *

Term.# E Check Label - SB705 [=4!M118=] *

Term.# F Check Label - N/A [=4!M119=]

Term.# G Check Label - [=4!M120=] *

Term.# H Check Label - P2(C2) [=4!M121=] *

Term.# I Check Label - P2(C3) [=4!M122=] *

Term.# J Check Label - N/A [=4!M123=]

Term.# K Check Label - N/A [=4!M124=]

HL710 / SB710

Term.# A Check Label - N/A [=4!AE114=]

Term.# B Check Label - N/A [=4!AE115=]

Term.# C Check Label - N2(C4) [=4!AE116=] *

Term.# D Check Label - HL710 [=4!AE117=] *

Term.# E Check Label - SB710 [=4!AE118=] *

Term.# F Check Label - N/A [=4!AE119=]

Term.# G Check Label - N2(C3) [=4!AE120=] *

Term.# H Check Label - P2(C3) [=4!AE121=] *

Term.# I Check Label - P2(C4) [=4!AE122=] *

Term.# J Check Label - N/A [=4!AE123=]

Term.# K Check Label - N/A [=4!AE124=]

SB750

Term.# A Check Label - LEM7A [=4!M129=] *

Term.# B Check Label - LEM8 [=4!M130=] *

Term.# C Check Label - LEM9A [=4!M131=] *

Term.# D Check Label - LEM10 [=4!M132=] *

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 8 / 16

1-3. Inspection for Emergency Stop Connector

LP1

Pin# A1 - Check Label LEM7A [=5!J9=] *

Pin# A2 - Check Label LEM10 [=5!J10=] *

Pin# A3. Check Label

Pin# A3 - Check Label [=5!J11=] *

Pin# B1 - Check Label LEM9A [=5!X9=] *

Pin# B2 - Check Label LEM8 [=5!X10=] *

Pin# B3. Check Label

Pin# B3 - Check Label [=5!X11=] *

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 9 / 16

1-4. Inspection for Operation panel (switch) Connector

LP2

Pin# A1 - Check Label P2(07) [=5!J44=] *

Pin# A2 - Check Label N2(26) [=5!J45=] *

Pin# A3 - Check Label LIN2 [=5!J46=] *

Pin# A4 - Check Label SB752 [=5!J47=] *

Pin# A5- Check Label SB701 [=5!J48=] *

Pin# A6- Check Label SB703 [=5!J49=] *

Pin# A7- Check Label SB705 [=5!J50=] *

Pin# A8- Check Label SB708 [=5!J51=] *

Pin# A9- Check Label SB710 [=5!J52=] *

Pin# A10- Check Label SB707 [=5!J53=] *

Pin# B1- Check Label P2(08) [=5!X44=] *

Pin# B2- Check Label N2(27) [=5!X45=] *

Pin# B3- Check Label LOU2 [=5!X46=] *

Pin# B4- Check Label SB700 [=5!X47=] *

Pin# B5- Check Label SB702 [=5!X48=] *

Pin# B6- Check Label SB704 [=5!X49=] *

Pin# B7- Check Label SB706 [=5!X50=] *

Pin# B8- Check Label SB709 [=5!X51=] *

Pin# B9- Check Label SB711 [=5!X52=] *

Pin# B10. Check Label

Pin# B10- Check Label [=5!X53=] *

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 10 / 16

1-5. Inspection for Operation panel (lamp) Connector

LP3

Pin# A01- Check Label HL752 [=5!J79=] *

Pin# A02- Check Label HL701 [=5!J80=] *

Pin# A03- Check Label HL703 [=5!J81=] *

Pin# A04- Check Label HL705 [=5!J82=] *

Pin# A05- Check Label HL753 [=5!J83=] *

Pin# A06- Check Label HL707 [=5!J84=] *

Pin# A07- Check Label HL709 [=5!J85=] *

Pin# A08- Check Label HL711 [=5!J86=] *

Pin# A9 - Check Label - N/A

Pin# A10. Check Label

Pin# A10- Check Label [=5!J88=] *

Pin# B1 - Check Label HL700 [=5!X79=] *

Pin# B2 - Check Label HL702 [=5!X80=] *

Pin# B3 - Check Label HL704 [=5!X81=] *

Pin# B4 - Check Label HL706 [=5!X82=] *

Pin# B5 - Check Label HL754 [=5!X83=] *

Pin# B6 - Check HL708 [=5!X84=] *

Pin# B7 - Check HL710 [=5!X85=] *

Pin# B8 - Check Label - N/A [=5!X86=]

Pin# B9 - Check Label - N/A [=5!X87=]

Pin# B10. Check Label

Pin# B10- Check Label [=5!X88=] *

LST Main Panel Inspection Sheet - Visual Inspection

Rev. 7, page 11 / 16

2. Check point

# 1 - Each device label correctly (Pasted to each device, ex. SB750, HL700, rtc…) [=6!AD7=] *

# 2 Fork terminal inserted completely [=6!AD8=] *

# 3 Ferrule terminal inserted completely [=6!AD9=] *

# 4 No short-circuit between plus and minus of the DC24V line (To measure resistance by tester) [=6!AD10=] *

# 5 No loosening in the terminal of each electrical devices [=6!AD11=] *

# 6 No loosening the all screws that attach each electrical devices [=6!AD12=] *

# 7 Torque marking on each screws [=6!AD13=] *

# 8 Using washer and spring washer to all screw that attached electrical devices, brackets and panels [=6!AD14=] *

# 9 Using black color screw to main cabinet screws [=6!AD15=] *

# 10 Devices are not damaged [=6!AD16=] *

# 11 Check pins of all AMP connectors are fully inserted by checking the front using light [=6!AD17=] *

# 12 Check all pins are in line in rows. Adjust with a screwdriver if necessary [=6!AD18=] *

# 13 Pull test all wires [=6!AD19=] *

# 14 Blow air behind panel, on all components [=6!AD20=] *

# 15 Vacuum out all surfaces - N/A [=6!AD21=]

# 16 Ship with Black Pan head screw and captive washer [=6!AD22=] *

# 17 Clean entire panel [=6!AD23=] *

# 18 Packaged correct way (No damage during shipping) [=6!AD24=] *

LST Main Panel Inspection Sheet

Rev. 7, page 12 / 16

3. Inspection using LST Main Panel checker

3-1. Inspection method

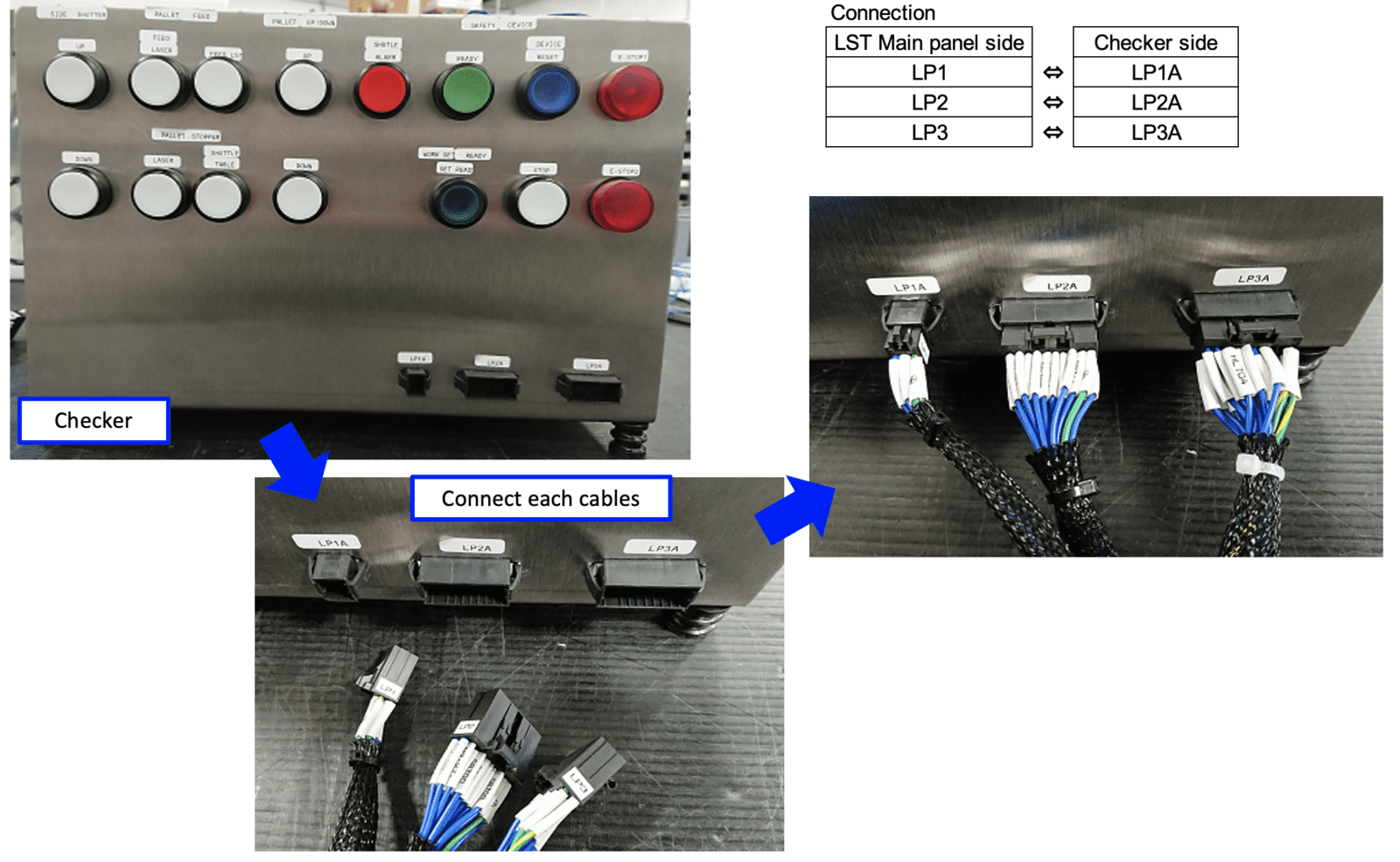

(1) Connect LST Main Panel connector to checker connector. *

(1) Connect LST Main Panel connector to checker connector.

LST Main Panel Inspection Sheet

Rev. 7, page 13 / 16

(2) Checker power plug connect to 120VAC socket.

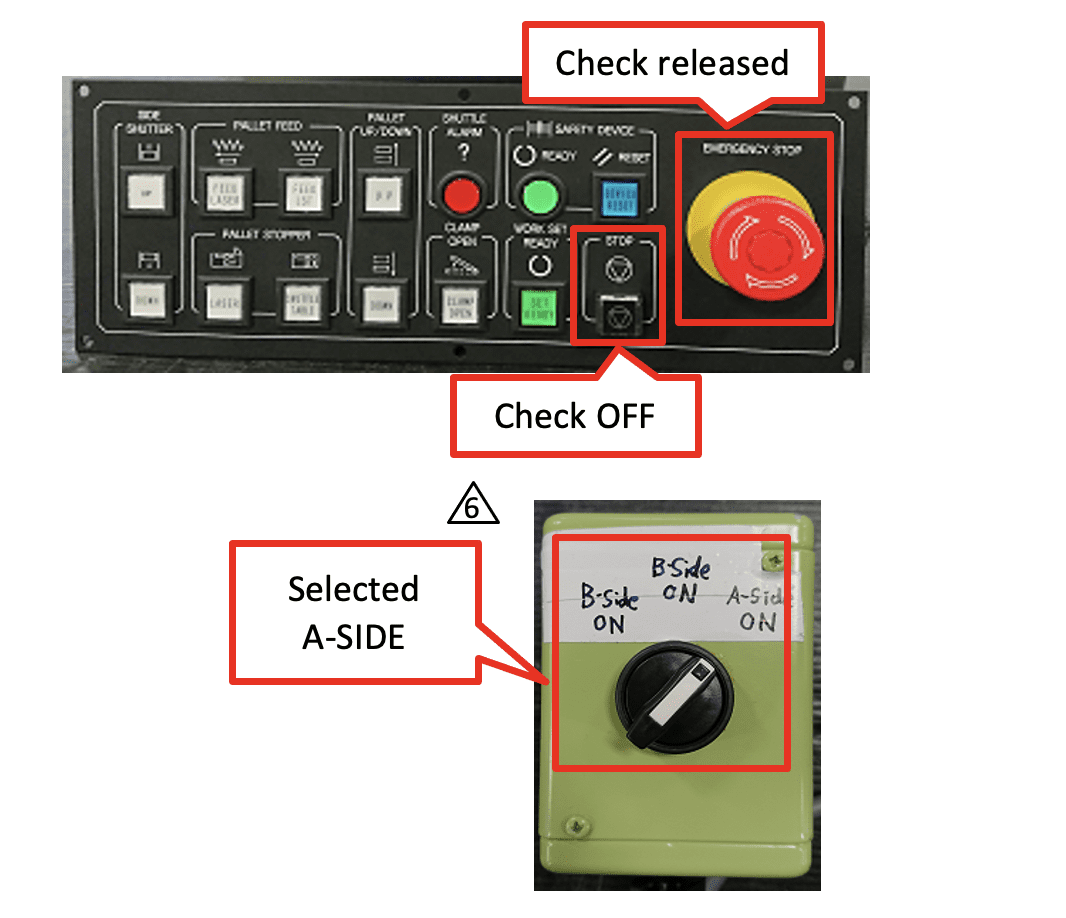

(3) Check E-stop switch (SB750) released and "STOP" switch is "OFF".

Check selector switch selected "A-SIDE" on checker side.

(4) Breaker turn ON and check first state.

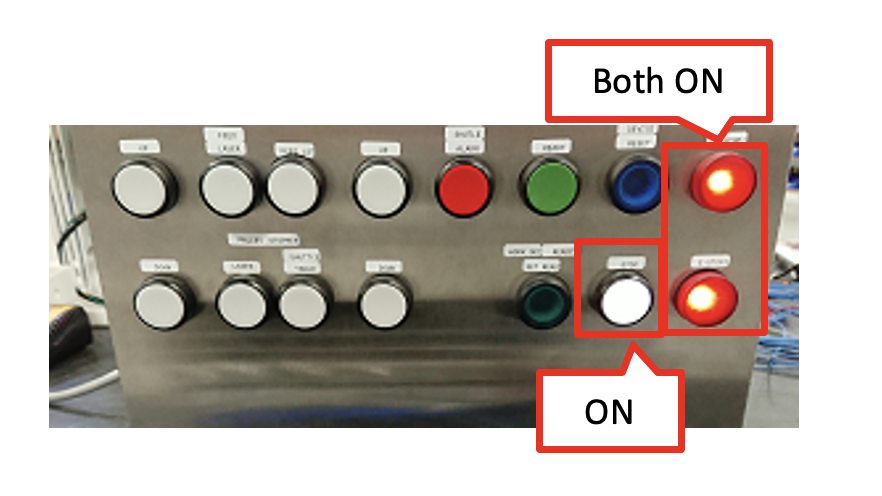

* E-stop lamp on checker is both lights ON.

* Stop lamp on checker is lights ON.

LST Main Panel Inspection Sheet

Rev. 7, page 14 / 16

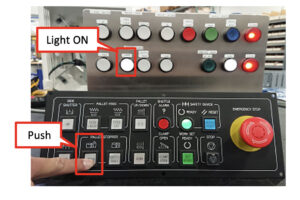

(5) Push switch on the LST Main Panel and check lamp on the checker corresponding to the pushed switch lights up.

Point
* "ALARM" and "SAFETY DEVICE READY" is only lamp on LST Main panel.

* "STOP" switch is alternate switch and the lamp lights ON when this switch OFF.

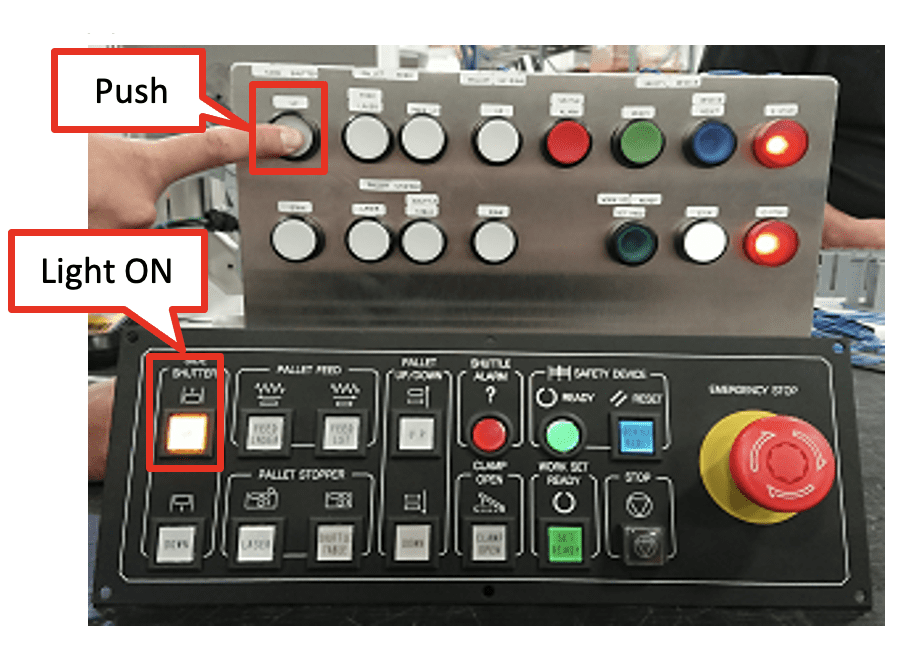

(6) Push switch on the checker and check lamp on the LST Main Panel corresponding to the pushed switch lights up.

Point

* "E-stop" is only lamps on checker.

(7) Select "B-SIDE" of the selector switch and try (4)-(6) check again.

(8) Complete all checks, remove power plug.

LST Main Panel Inspection Sheet

Rev. 7, page 15 / 16

3-2. Checking list

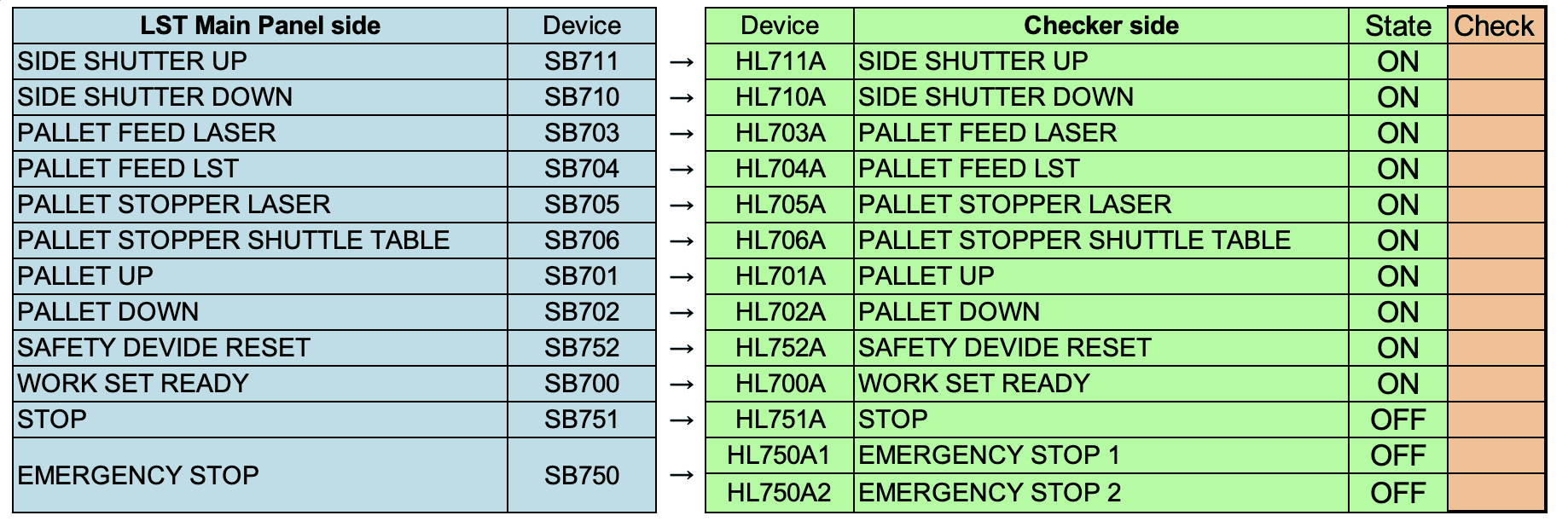

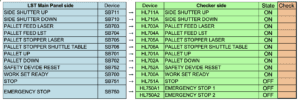

1) Push LST Main Panel side switches with selector switch select "A-SIDE"

Check SIDE SHUTTER UP (SB711) -> (HL711A) SIDE SHUTTER UP is ON [=7!AG114=] *

Check SIDE SHUTTER DOWN (SB710) -> (HL710A) SIDE SHUTTER DOWN is ON [=7!AG115=] *

Check PALLET FEED LASER (SB703) -> (HL703A) PALLET FEED LASER is ON [=7!AG116=] *

Check PALLET FEED LST (SB704) -> (HL704A) PALLET FEED LST is ON [=7!AG117=] *

Check PALLET STOPPER LASER (SB705) -> (HL705A) PALLET STOPPER LASER is ON [=7!AG118=] *

Check PALLET STOPPER SHUTTLE TABLE (SB706) -> (HL706A) PALLET STOPPER SHUTTLE TABLE is ON [=7!AG119=] *

Check PALLET UP (SB701) -> (HL701A) PALLET UP is ON [=7!AG120=] *

Check PALLET DOWN (SB702) -> (HL702A) PALLET DOWN is ON [=7!AG121=] *

Check SAFETY DEVIDE RESET (SB752) -> (HL752A) SAFETY DEVIDE RESET is ON [=7!AG122=] *

Check WORK SET READY (SB700) -> (HL700A) WORK SET READY is ON [=7!AG123=] *

Check STOP (SB751) -> (HL751A) STOP is OFF [=7!AG124=] *

Check EMERGENCY STOP (SB750) -> (HL750A1) EMERGENCY STOP 1 is OFF [=7!AG125=] *

Check EMERGENCY STOP (SB750) -> (HL750A2) EMERGENCY STOP 2 is OFF [=7!AG126=] *

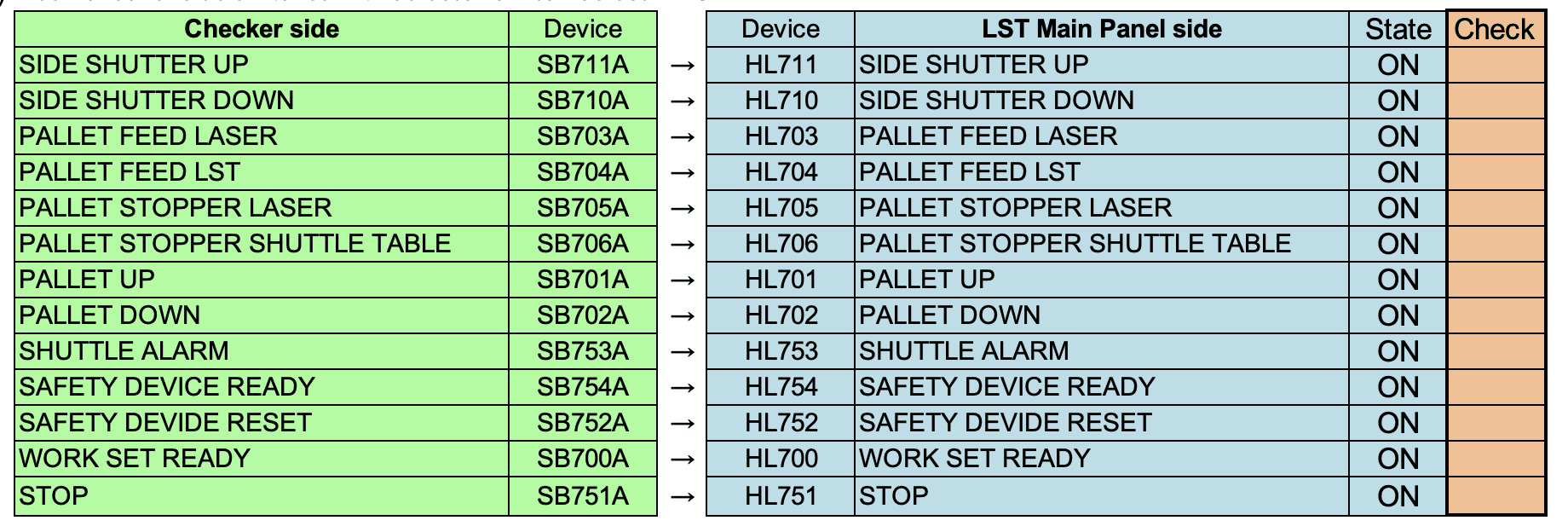

(2) Push checker side switches with selector switch select "A-SIDE"

Check SIDE SHUTTER UP (SB711A) -> (HL711) SIDE SHUTTER UP is ON [=7!AG130=] *

Check SIDE SHUTTER DOWN (SB710A) -> (HL710) SIDE SHUTTER DOWN is ON [=7!AG131=] *

Check PALLET FEED LASER (SB703A) -> (HL703) PALLET FEED LASER is ON [=7!AG132=] *

Check PALLET FEED LST (SB704A) -> (HL704) PALLET FEED LST is ON [=7!AG133=] *

Check PALLET STOPPER LASER (SB705A) -> (HL705) PALLET STOPPER LASER is ON [=7!AG134=] *

Check PALLET STOPPER SHUTTLE TABLE (SB706A) -> (HL706) PALLET STOPPER SHUTTLE TABLE is ON [=7!AG135=] *

Check PALLET UP (SB701A) -> (HL701) PALLET UP is ON [=7!AG136=] *

Check PALLET DOWN (SB702A) -> (HL702) PALLET DOWN is ON [=7!AG137=] *

Check SHUTTLE ALARM (SB753A) -> (HL753) SHUTTLE ALARM is ON [=7!AG138=] *

Check SAFETY DEVICE READY (SB754A) -> (HL754) SAFETY DEVICE READY is ON [=7!AG139=] *

Check SAFETY DEVICE RESET (SB752A) -> (HL752) SAFETY DEVICE RESET is ON [=7!AG140=] *

Check WORK SET READY (SB700A) -> (HL700) WORK SET READY is ON [=7!AG141=] *

Check STOP (SB751A) -> (HL751) STOP is ON [=7!AG142=] *

LST Main Panel Inspection Sheet

Rev. 7, page 16 / 16

3-2. Checking list

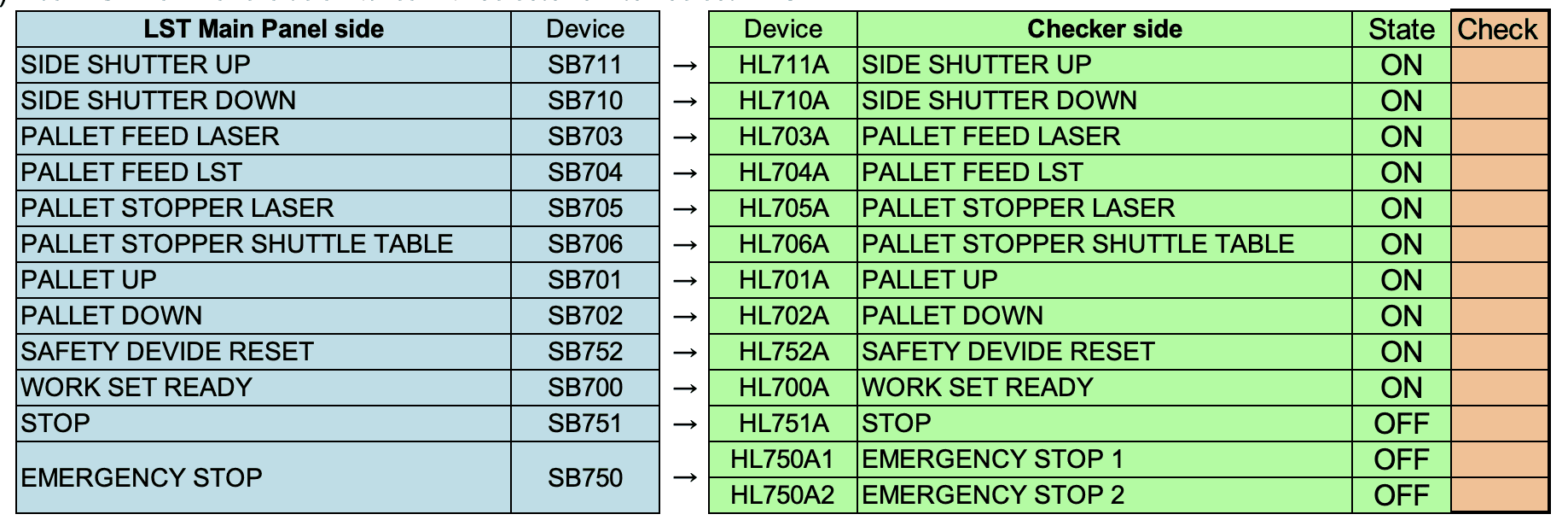

(3) Push LST Main Panel side switches with selector switch select "B-SIDE"

Check SIDE SHUTTER UP (SB711) -> (HL711A) SIDE SHUTTER UP is ON [=7!AG149=] *

Check SIDE SHUTTER DOWN (SB710) -> (HL710A) SIDE SHUTTER DOWN is ON [=7!AG150=] *

Check PALLET FEED LASER (SB703) -> (HL703A) PALLET FEED LASER is ON [=7!AG151=] *

Check PALLET FEED LST (SB704) -> (HL704A) PALLET FEED LST is ON [=7!AG152=] *

Check PALLET STOPPER LASER (SB705) -> (HL705A) PALLET STOPPER LASER is ON [=7!AG153=] *

Check PALLET STOPPER SHUTTLE TABLE (SB706) -> (HL706A) PALLET STOPPER SHUTTLE TABLE is ON [=7!AG154=] *

Check PALLET UP (SB701) -> (HL701A) PALLET UP is ON [=7!AG155=] *

Check PALLET DOWN (SB702) -> (HL702A) PALLET DOWN is ON [=7!AG156=] *

Check SAFETY DEVIDE RESET (SB752) -> (HL752A) SAFETY DEVIDE RESET is ON [=7!AG157=] *

Check WORK SET READY (SB700) -> (HL700A) WORK SET READY is ON [=7!AG158=] *

Check STOP (SB751) -> (HL751A) STOP is OFF [=7!AG159=] *

Check EMERGENCY STOP (SB750) -> (HL750A1) EMERGENCY STOP 1 is OFF [=7!AG160=] *

Check EMERGENCY STOP (SB750) -> (HL750A2) EMERGENCY STOP 2 is OFF [=7!AG161=] *

(4) Push checker side switches with selector switch select "B-SIDE"

Check SIDE SHUTTER UP (SB711A) -> (HL711) SIDE SHUTTER UP is ON [=7!AG165=] *

Check SIDE SHUTTER DOWN (SB710A) -> (HL710) SIDE SHUTTER DOWN is ON [=7!AG166=] *

Check PALLET FEED LASER (SB703A) -> (HL703) PALLET FEED LASER is ON [=7!AG167=] *

Check PALLET FEED LST (SB704A) -> (HL704) PALLET FEED LST is ON [=7!AG168=] *

Check PALLET STOPPER LASER (SB705A) -> (HL705) PALLET STOPPER LASER is ON [=7!AG169=] *

Check PALLET STOPPER SHUTTLE TABLE (SB706A) -> (HL706) PALLET STOPPER SHUTTLE TABLE is ON [=7!AG170=] *

Check PALLET UP (SB701A) -> (HL701) PALLET UP is ON [=7!AG171=] *

Check PALLET DOWN (SB702A) -> (HL702) PALLET DOWN is ON [=7!AG172=] *

Check SHUTTLE ALARM (SB753A) -> (HL753) SHUTTLE ALARM is ON [=7!AG173=] *

Check SAFETY DEVICE READY (SB754A) -> (HL754) SAFETY DEVICE READY is ON [=7!AG174=] *

Check SAFETY DEVIDE RESET (SB752A) -> (HL752) SAFETY DEVIDE RESET is ON [=7!AG175=] *

Check WORK SET READY (SB700A) -> (HL700) WORK SET READY is ON [=7!AG176=] *

Check STOP (SB751A) -> (HL751) STOP is ON [=7!AG177=] *

I acknowledge that the above information is complete and accurate (sign name) *

Clear Signature

Inspector Name (Print)
