Cobra | IMS EP QC Checklist

Cobra

Enter Job Number *

Confirm job traveler part number, Qty, and Rev number before inspection and inspect according to the drawing. *

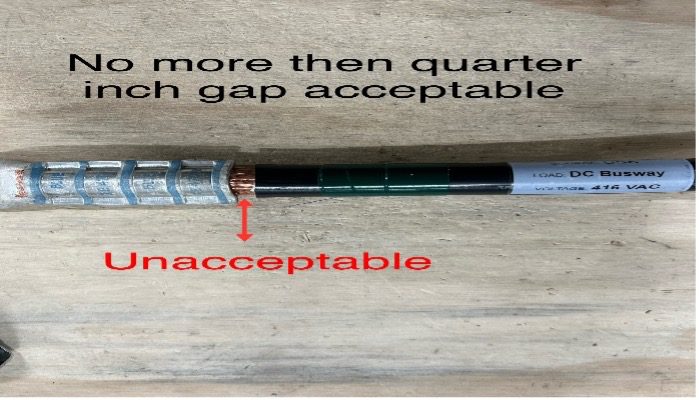

Verify there is no gap between lug and cable insulation. Only quarter inch gap acceptable. *

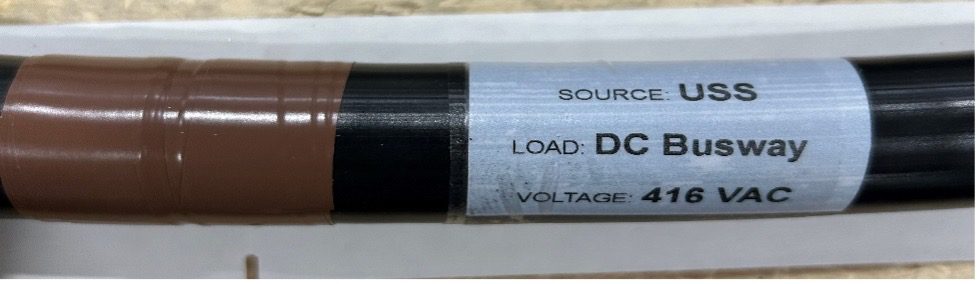

Verify the label and color tape which represent the length on the cable. *

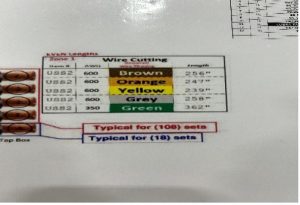

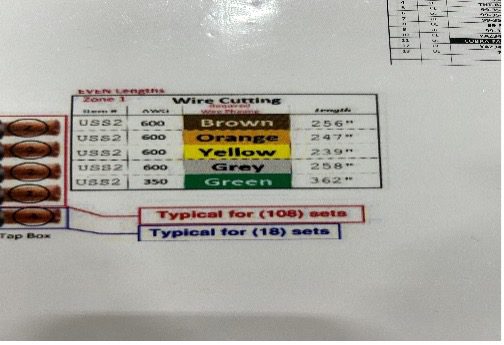

See Drawing for the cable length chart. *

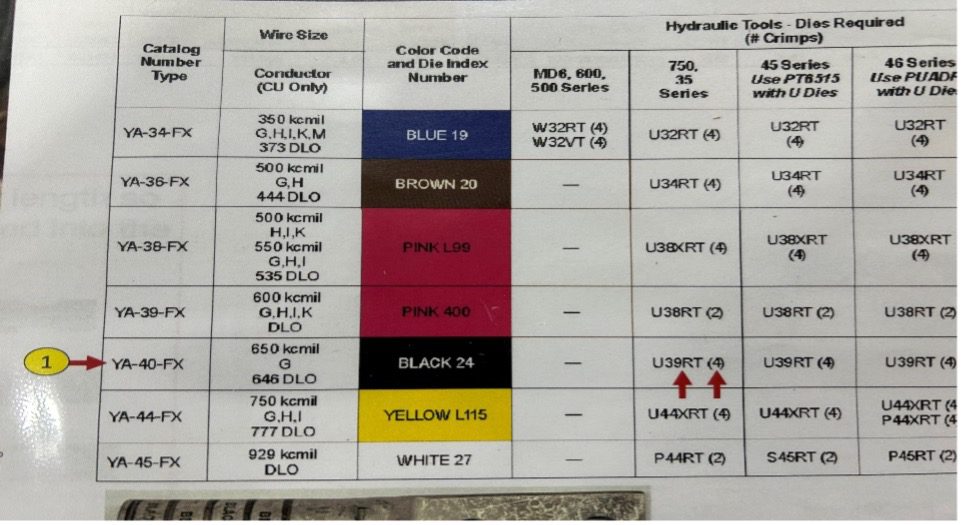

Check crimp with Brandy Tool to verify a good crimp. Die set size should match the result on the inspect tool. *

Upload Photo

Click or drag files to this area to upload. You can upload up to 5 files.

Comments

I acknowledge that the above information is complete and accurate (sign name) *

Clear Signature
