LST Control Panel Inspection Sheet Ver.21.2

Return to the checklist selection list

Enter Serial Number *

Enter Job Number *

Customer (AUTO)

Part Number (AUTO)

Description (AUTO)

LST Control Panel Inspection Sheet (Visual Check 1)

1. Visual Inspection: 1-1.PLC

Ver.21.2 Page 1 / 24

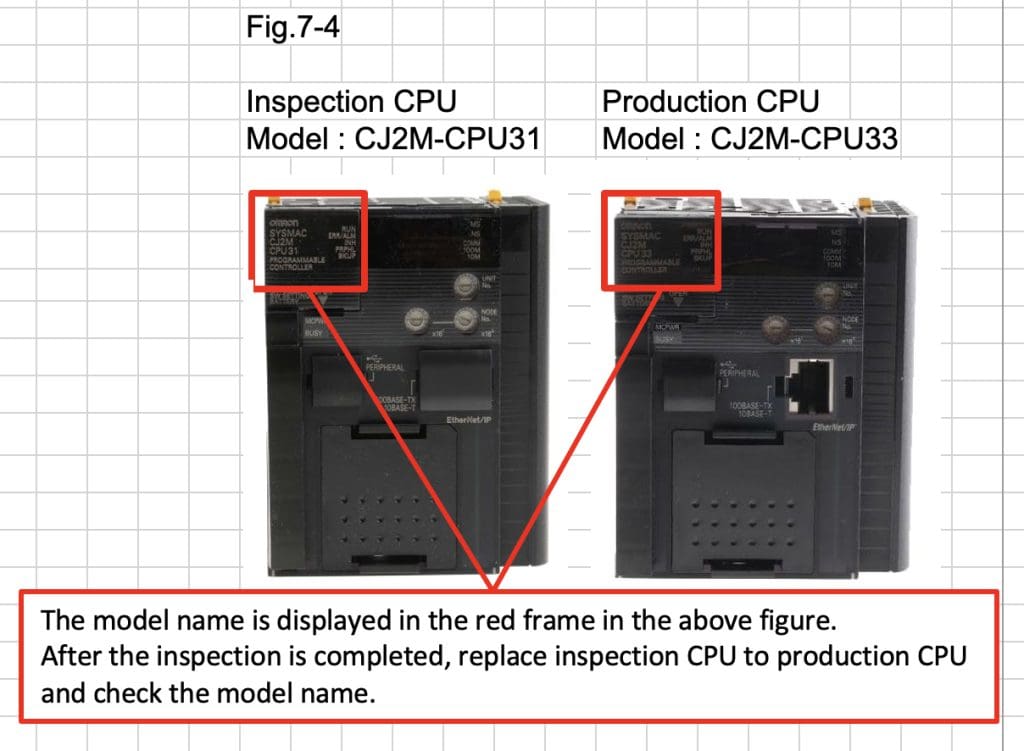

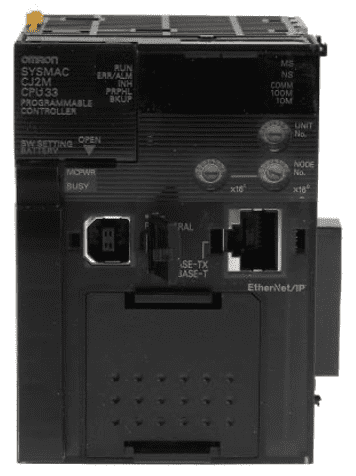

CPU model : CJ2M-CPU33

Pin# + / Label P2 (Check) [=2!H11=] *

Pin# - / Label N2 (Check) [=2!H13=] *

Pin#

Label PE (Check) [=2!H15=] *

Pin#

Label PE (Check) [=2!H17=] *

Pin# NC / Label NONE (Check) [=2!H19=] *

Pin# NC / Label NONE (Check) [=2!H21=] *

CH000 ID211

Pin# 0 / Label 00000 (Check) [=2!C28=] *

Pin# 2 / Label 00002 (Check) [=2!C30=] *

Pin# 4 / Label 00004 (Check) [=2!C32=] *

Pin# 6 / Label 00006 (Check) [=2!C34=] *

Pin# 8 / Label SQ302 (Check) [=2!C36=] *

Pin# 10 / Label SQ304 (Check) [=2!C38=] *

Pin# 12 / Label SQ316 (Check) [=2!C40=] *

Pin# 14 / Label 000.14 (Check) [=2!C42=] *

Pin# com / Label N2 (Check) [=2!C44=] *

Pin# 1 / Label 00001 (Check) [=2!O29=] *

Pin# 3 / Label 00003 (Check) [=2!O31=] *

Pin# 5 / Label 00005 (Check) [=2!O33=] *

Pin# 7 / Label 00007 (Check) [=2!O35=] *

Pin# 9 / Label SQ303 (Check) [=2!O37=] *

Pin# 11 / Label 000.11 (Check) [=2!O39=] *

Pin# 13 / Label SQ317 (Check) [=2!O41=] *

Pin# 15 / Label 000.15 (Check) [=2!O43=] *

Pin# com / Label N2 (Check) [=2!O45=] *

ch No. CH001, 002 / Input Unit Model: CJ1W-ID231 & C500-CE404 [=2!O50=] *

ch No. CH003, 004 / Input Unit Model: CJ1W-ID231 & C500-CE404 [=2!O52=] *

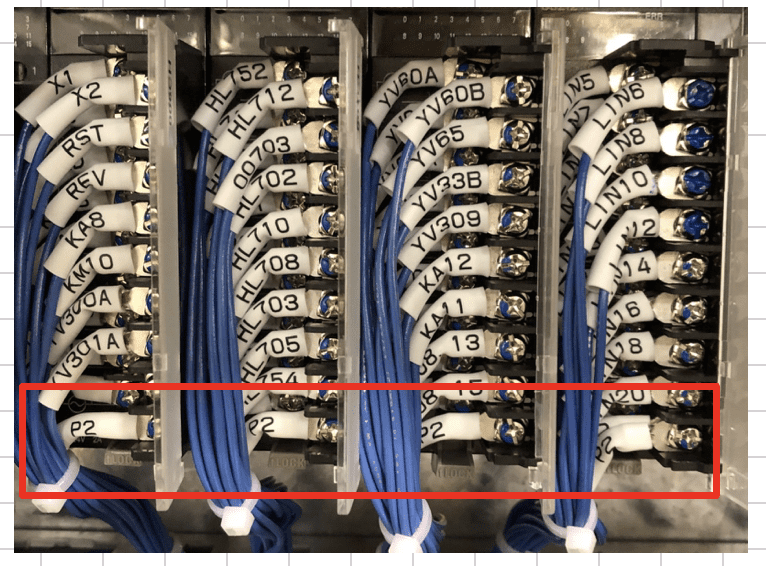

CH006 OC211

Pin# 0 / Label X1 (Check) [=2!U28=] *

Pin# 2 / Label X3 (Check) [=2!U30=] *

Pin# 4 / Label FRD (Check) [=2!U32=] *

Pin# 6 / Label KA68 (Check) [=2!U34=] *

Pin# 8 / Label KA9 (Check) [=2!U36=] *

Pin# 10 / Label NONE (Check) [=2!U38=] *

Pin# 12 / Label YV300B (Check) [=2!U40=] *

Pin# 14 / Label YV301B (Check) [=2!U42=] *

Pin# com / Label P2 (Check) [=2!U44=] *

Pin# 1 / Label X2 (Check) [=2!AG29=] *

Pin# 3 / Label RST (Check) [=2!AG31=] *

Pin# 5 / Label REV (Check) [=2!AG33=] *

Pin# 7 / Label KA8 (Check) [=2!AG35=] *

Pin# 9 / Label KM10 (Check) [=2!AG37=] *

Pin# 11 / Label YV300A (Check) [=2!AG39=] *

Pin# 13 / Label YV301A (Check) [=2!AG41=] *

Pin# 15 / Label NONE (Check) [=2!AG43=] *

Pin# com / Label P2 (Check) [=2!AG45=] *

CH007 OC211

Pin# 0 / Label HL752 (Check) [=2!C73=] *

Pin# 2 / Label HL713 (Check) [=2!C75=] *

Pin# 4 / Label HL701 (Check) [=2!C77=] *

Pin# 6 / Label HL711 (Check) [=2!C79=] *

Pin# 8 / Label HL709 (Check) [=2!C81=] *

Pin# 10 / Label HL700 (Check) [=2!C83=] *

Pin# 12 / Label HL704 (Check) [=2!C85=] *

Pin# 14 / Label HL706 (Check) [=2!C87=] *

Pin# com / Label P2 (Check) [=2!C89=] *

Pin# 1 / Label HL712 (Check) [=2!O74=] *

Pin# 3 / Label 00703 (Check) [=2!O76=] *

Pin# 5 / Label HL702 (Check) [=2!O78=] *

Pin# 7 / Label HL710 (Check) [=2!O80=] *

Pin# 9 / Label HL708 (Check) [=2!O82=] *

Pin# 11 / Label HL703 (Check) [=2!O84=] *

Pin# 13 / Label HL705 (Check) [=2!O86=] *

Pin# 15 / Label HL754 (Check) [=2!O88=] *

Pin# com / Label P2 (Check) [=2!O90=] *

CH008 OC211

Pin# 0 / Label YV60A (Check) [=2!U73=] *

Pin# 2 / Label YV64 (Check) [=2!U75=] *

Pin# 4 / Label YV33A (Check) [=2!U77=] *

Pin# 6 / Label YV308 (Check) [=2!U79=] *

Pin# 8 / Label KA14 (Check) [=2!U81=] *

Pin# 10 / Label KA10 (Check) [=2!U83=] *

Pin# 12 / Label 008.12 (Check) [=2!U85=] *

Pin# 14 / Label 008.14 (Check) [=2!U87=] *

Pin# com / Label P2 (Check) [=2!U89=] *

Pin# 1 / Label YV60B (Check) [=2!AG74=] *

Pin# 3 / Label YV65 (Check) [=2!AG76=] *

Pin# 5 / Label YV33B (Check) [=2!AG78=] *

Pin# 7 / Label YV309 (Check) [=2!AG80=] *

Pin# 9 / Label KA12 (Check) [=2!AG82=] *

Pin# 11 / Label KA11 (Check) [=2!AG84=] *

Pin# 13 / Label 008.13 (Check) [=2!AG86=] *

Pin# 15 / Label 008.15 (Check) [=2!AG88=] *

Pin# com / Label P2 (Check) [=2!AG90=] *

CH009 OD211

Pin# 0 / Label LIN5 (Check) [=2!C99=] *

Pin# 2 / Label LIN7 (Check) [=2!C101=] *

Pin# 4 / Label LIN9 (Check) [=2!C103=] *

Pin# 6 / Label LIN11 (Check) [=2!C105=] *

Pin# 8 / Label LIN13 (Check) [=2!C107=] *

Pin# 10 / Label LIN15 (Check) [=2!C109=] *

Pin# 12 / Label LIN17 (Check) [=2!C111=] *

Pin# 14 / Label LIN19 (Check) [=2!C113=] *

Pin# com / Label N2 (Check) [=2!C115=] *

Pin# 1 / Label LIN6 (Check) [=2!O100=] *

Pin# 3 / Label LIN8 (Check) [=2!O102=] *

Pin# 5 / Label LIN10 (Check) [=2!O104=] *

Pin# 7 / Label LIN12 (Check) [=2!O106=] *

Pin# 9 / Label LIN14 (Check) [=2!O108=] *

Pin# 11 / Label LIN16 (Check) [=2!O110=] *

Pin# 13 / Label LIN18 (Check) [=2!O112=] *

Pin# 15 / Label LIN20 (Check) [=2!O114=] *

Pin# com / Label P2 (Check) [=2!O116=] *

LST Control Panel Inspection Sheet (Visual Check 2)

Ver.21.2

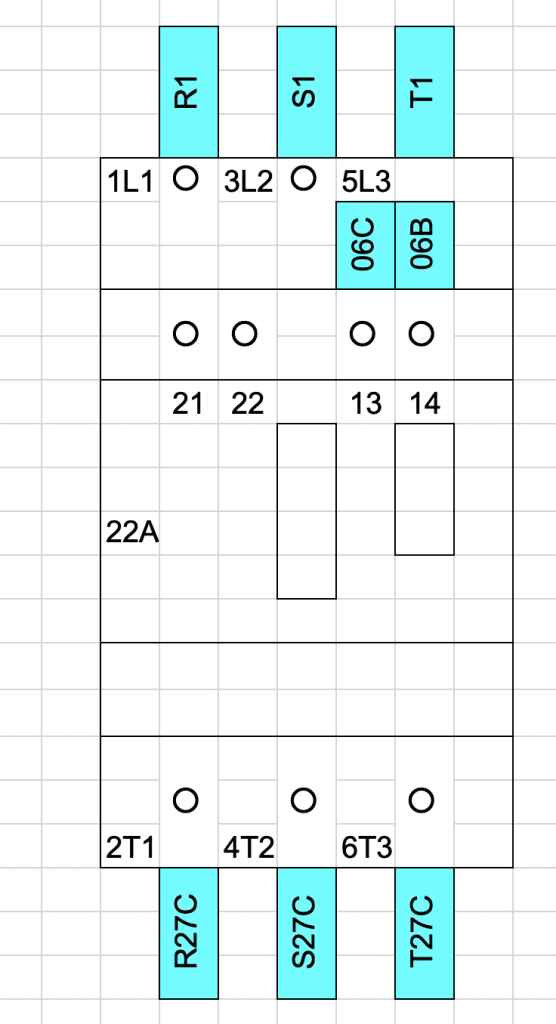

1-2. QF2A

Term# 1L1 / Label R1 (Check) [=3!P13=] *

Term# 3L2 / Label S1 (Check) [=3!P14=] *

Term# 5L3 / Label T1 (Check) [=3!P15=] *

Term# 2T1 / Label R27C (Check) [=3!P16=] *

Term# 4T2 / Label S27C (Check) [=3!P17=] *

Term# 6T3 / Label T27C (Check) [=3!P18=] *

Term# 13 / Label 06C (Check) [=3!P19=] *

Term# 14 / Label 06B (Check) [=3!P20=] *

Term# DIAL / Label 22Amps (Check) [=3!P21=] *

1-3. QF700

Term# 1L1 / Label R1 (Check) [=3!AH13=] *

Term# 3L2 / Label S1 (Check) [=3!AH14=] *

Term# 5L3 / Label T1 (Check) [=3!AH15=] *

Term# 2T1 / Label U11A (Check) [=3!AH16=] *

Term# 4T2 / Label V11A (Check) [=3!AH17=] *

Term# 6T3 / Label W11A (Check) [=3!AH18=] *

Term# 13 / Label 06B (Check) [=3!AH19=] *

Term# 14 / Label 06A (Check) [=3!AH20=] *

Term# DIAL / Label 15 Amps (Check) [=3!AH21=] *

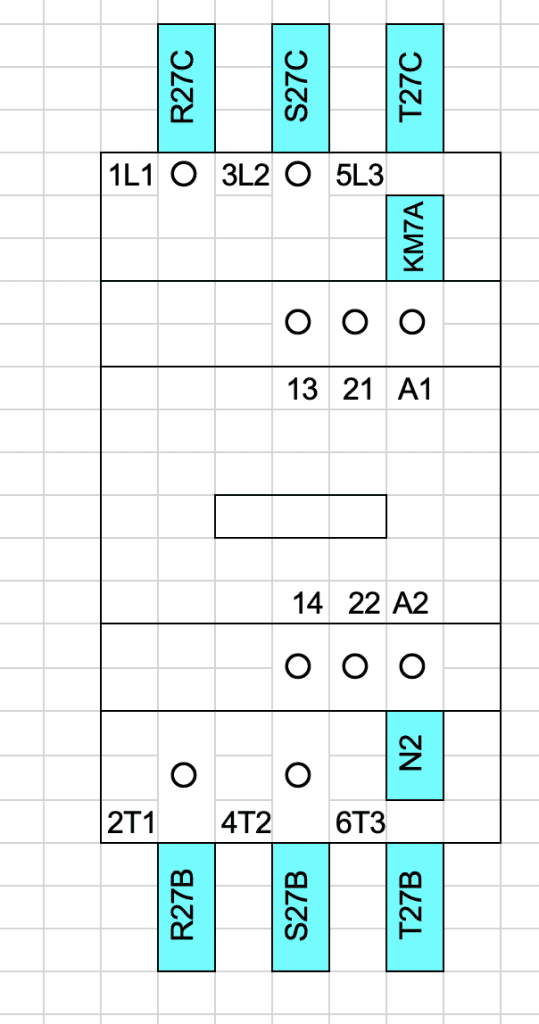

1-4. KM7A

Term# 1L1 / Label R27C (Check) [=3!P48=] *

Term# 3L2 / Label S27C (Check) [=3!P49=] *

Term# 5L3 / Label T27C (Check) [=3!P50=] *

Term# 2T1 / Label R27B (Check) [=3!P51=] *

Term# 4T2 / Label S27B (Check) [=3!P52=] *

Term# 6T3 / Label T27B (Check) [=3!P53=] *

Term# A1 / Label KM7A (Check) [=3!P54=] *

Term# A2 / Label N2 (Check) [=3!P55=] *

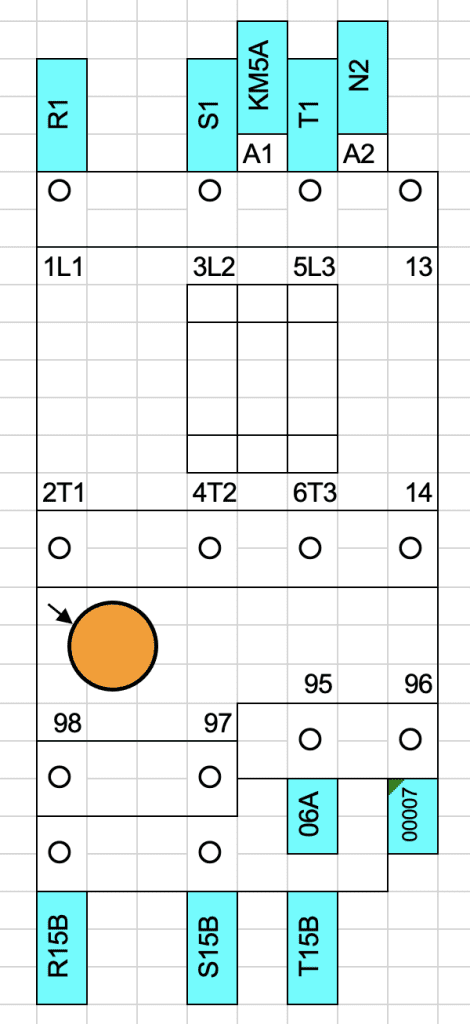

1-5. KM5A, QF3A

Term# 1L1 / Label R1 (Check) [=3!AH48=] *

Term# 3L2 / Label S1 (Check) [=3!AH49=] *

Term# 5L3 / Label T1 (Check) [=3!AH50=] *

Term# 2T1 / Label R15B (Check) [=3!AH51=] *

Term# 4T2 / Label S15B (Check) [=3!AH52=] *

Term# 6T3 / Label T15B (Check) [=3!AH53=] *

Term# A1 / Label KM5A (Check) [=3!AH54=] *

Term# A2 / Label N2 (Check) [=3!AH55=] *

Term# 95 / Label 06A (Check) [=3!AH56=] *

Term# 96 / Label 00007 (Check) [=3!AH57=] *

Term# DIAL / Label 7 Amps (Check) [=3!AH58=] *

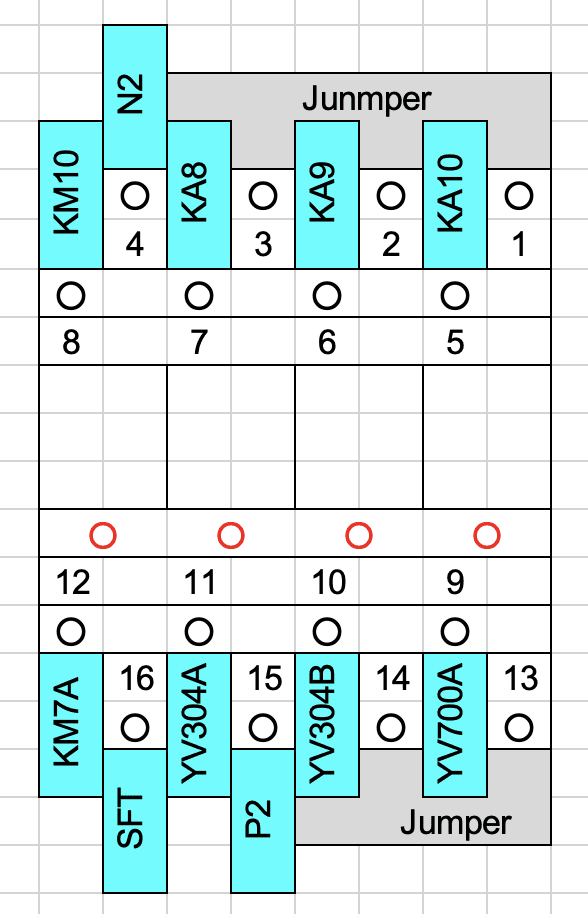

1-6. KA7, KA8, KA9, KA10

Term# 1 / Label Jumper to 4 (Check) [=3!Q81=] *

Term# 2 / Label Jumper to 4 (Check) [=3!Q82=] *

Term# 3 / Label Jumper to 4 (Check) [=3!Q83=] *

Term# 4 / Label N2 (Check) [=3!Q84=] *

Term# 5 / Label KA10 (Check) [=3!Q85=] *

Term# 6 / Label KA9 (Check) [=3!Q86=] *

Term# 7 / Label KA8 (Check) [=3!Q87=] *

Term# 8 / Label KM10 (Check) [=3!Q88=] *

Term# 9 / Label YV700A (Check) [=3!Q89=] *

Term# 10 / Label YV304B (Check) [=3!Q90=] *

Term# 11 / Label YV304A (Check) [=3!Q91=] *

Term# 12 / Label KM7A (Check) [=3!Q92=] *

Term# 13 / Label Jumper to 15 (Check) [=3!Q93=] *

Term# 14 / Label Jumper to 15 (Check) [=3!Q94=] *

Term# 15 / Label P2 (Check) [=3!Q95=] *

Term# 16 / Label SFT (Check) [=3!Q96=] *

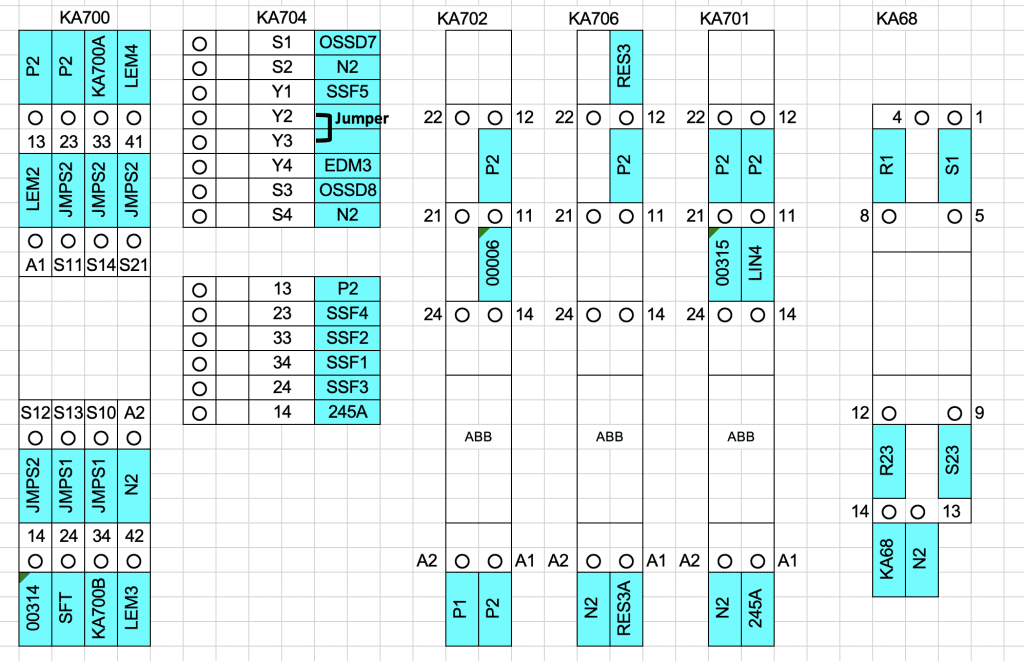

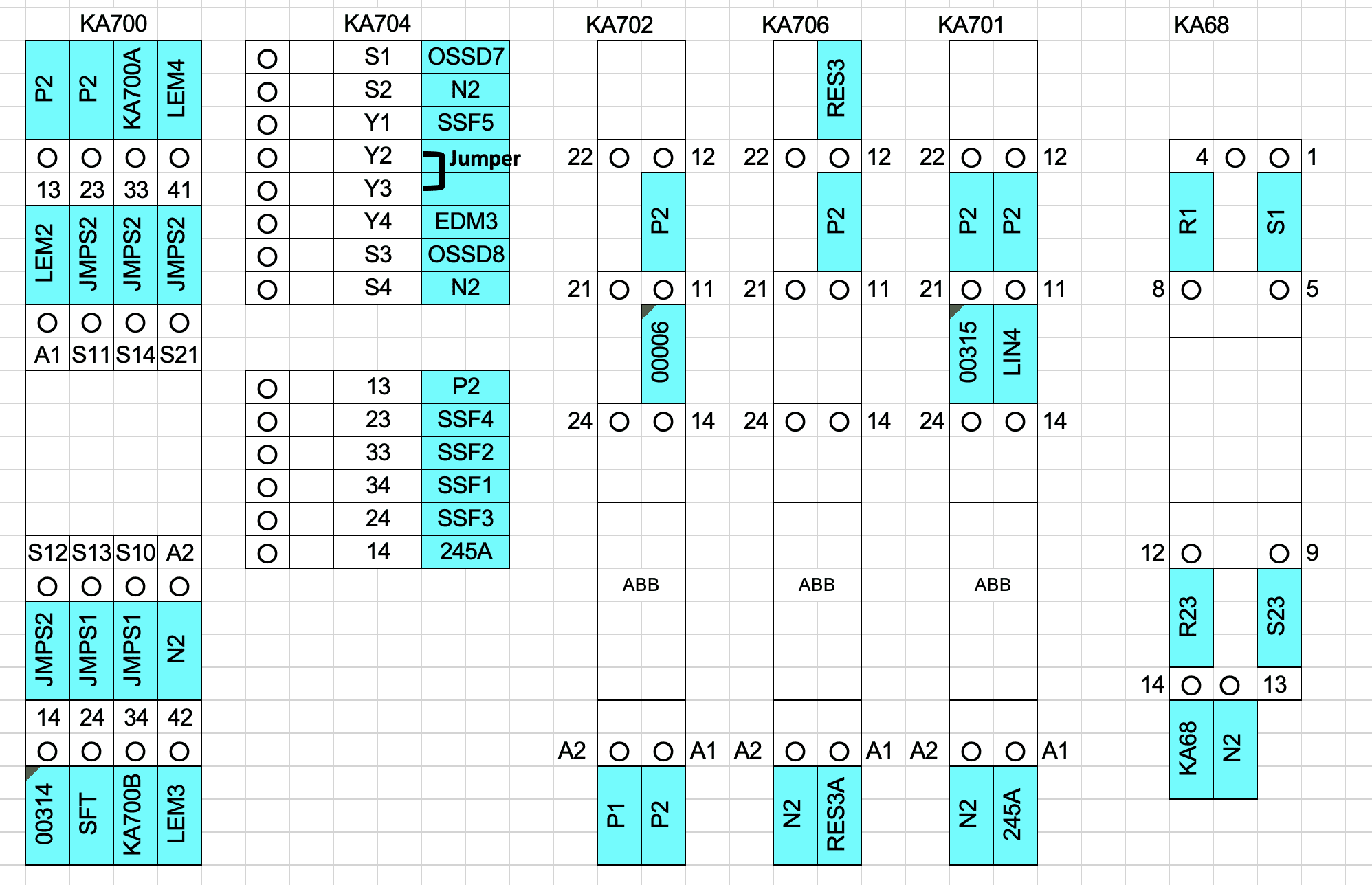

1-7. KA700, KA701, KA702, KA704, KA705, KA706, KA68

Ver.21.2

KA700

Term# 13 / Label P2 (Check) [=3!H148=] *

Term# 14 / Label 00314 (Check) [=3!H149=] *

Term# 23 / Label P2 (Check) [=3!H150=] *

Term# 24 / Label SFT (Check) [=3!H151=] *

Term# 33 / Label KA700A (Check) [=3!H152=] *

Term# 34 / Label KA700B (Check) [=3!H153=] *

Term# 41 / Label LEM4 (Check) [=3!H154=] *

Term# 42 / Label LEM3 (Check) [=3!H155=] *

Term# S10 / Label JMPS1 (Check) [=3!H156=] *

Term# S11 / Label JMPS2 (Check) [=3!H157=] *

Term# S12 / Label JMPS2 (Check) [=3!H158=] *

Term# S13 / Label JMPS1 (Check) [=3!H159=] *

Term# S14 / Label JMPS2 (Check) [=3!H160=] *

Term# S21 / Label JMPS2 (Check) [=3!H161=] *

Term# A1 / Label LEM2 (Check) [=3!H162=] *

Term# A2 / Label N2 (Check) [=3!H163=] *

KA704

Term# S1 / Label OSSD7 (Check) [=3!P148=] *

Term# S2 / Label N2 (Check) [=3!P149=] *

Term# Y1 / Label SSF5 (Check) [=3!P150=] *

Term# Y2 and Y3 / Label Jumper between YA and Y3 (Check) [=3!P151=] *

Term# Y4 / Label EDM3 (Check) [=3!P153=] *

Term# S3 / Label OSSD8 (Check) [=3!P154=] *

Term# S4 / Label N2 (Check) [=3!P155=] *

Term# 13 / Label P2 (Check) [=3!P157=] *

Term# 23 / Label SSF4 (Check) [=3!P158=] *

Term# 33 / Label SSF2 (Check) [=3!P159=] *

Term# 34 / Label SSF1 (Check) [=3!P160=] *

Term# 24 / Label SSF3 (Check) [=3!P161=] *

Term# 14 / Label 245A (Check) [=3!P162=] *

KA701

Term# 11 / Label P2 (Check) [=3!X148=] *

Term# 12 / Label NONE (Check) [=3!X149=] *

Term# 14 / Label LIN4 (Check) [=3!X150=] *

Term# 21 / Label P2 (Check) [=3!X151=] *

Term#22 / Label NONE (Check) [=3!X152=] *

Term# 24 / Label 00315 (Check) [=3!X153=] *

Term# A1 / Label 245A (Check) [=3!X154=] *

Term# A2 / Label N2 (Check) [=3!X155=] *

KA702

Term# 11 / Label P2 (Check) [=3!AF148=] *

Term# 12 / Label NONE (Check) [=3!AF149=] *

Term# 14 / Label 00006 (Check) [=3!AF150=] *

Term# 21 / Label NONE (Check) [=3!AF151=] *

Term# 22/ Label NONE (Check) [=3!AF152=] *

Term# 14/ Label NONE (Check) [=3!AF153=] *

Term# A1 / Label P2 (Check) [=3!AF154=] *

Term# A2 / Label P1 (Check) [=3!AF155=] *

KA706

Term# 11 / Label P2 (Check) [=3!X159=] *

Term# 12 / Label RES3 (Check) [=3!X160=] *

Term# 14 / Label NONE (Check) [=3!X161=] *

Term# 21 / Label NONE (Check) [=3!X162=] *

Term# 22 / Label NONE (Check) [=3!X163=] *

Term# 14 / Label NONE (Check) [=3!X164=] *

Term# A1 / Label RES3A (Check) [=3!X165=] *

Term# A2 / Label N2 (Check) [=3!X166=] *

KA68

Term# 1 / Label NONE (Check) [=3!AF159=] *

Term# 4 / Label NONE (Check) [=3!AF160=] *

Term# 5 / Label S1 (Check) [=3!AF161=] *

Term# 8 / Label R1 (Check) [=3!AF162=] *

Term# 9 / Label S23 (Check) [=3!AF163=] *

Term# 12 / Label R23 (Check) [=3!AF164=] *

Term# 13 / Label N2 (Check) [=3!AF165=] *

Term# 14 / Label KA68 (Check) [=3!AF166=] *

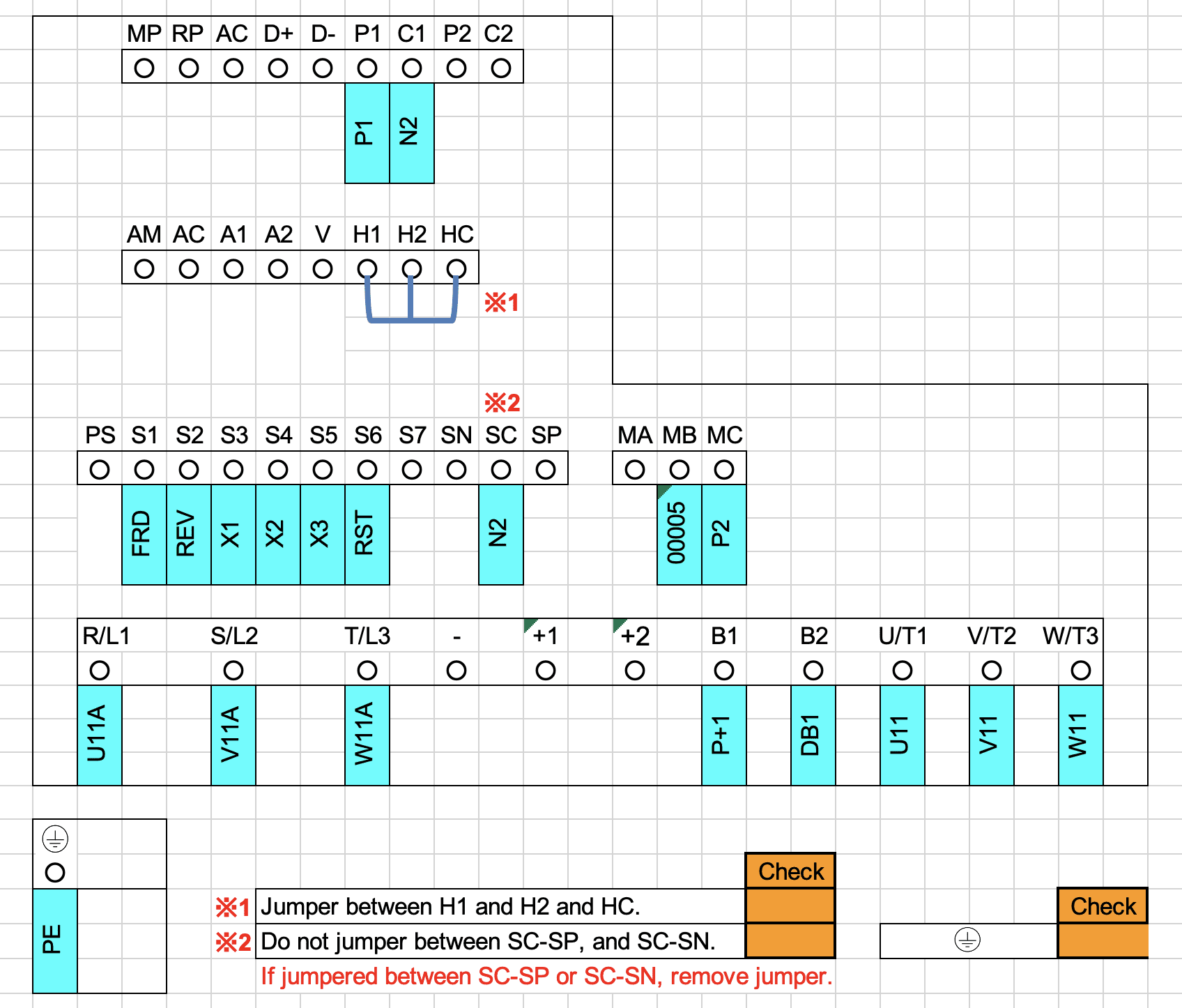

1-8. U11

※1 Jumper between H1 and H2 and HC. (Check) [=3!S207=] *

※2 Do not jumper between SC-SP, and SC-SN. If jumpered between SC-SP or SC-SN, remove jumper. (Check) [=3!S208=] *

Label PE (Check) [=3!Z208=] *

Main circuit

Term# R/L1 / Label U11A (Check) [=3!AA179=] *

Term# S/L2 / Label V11A (Check) [=3!AA180=] *

Term# T/L3 / Label W11A (Check) [=3!AA181=] *

Term# - / Label NONE (Check) [=3!AA182=] *

Term# +1 / Label NONE (Check) [=3!AA183=] *

Term# +2 / Label NONE (Check) [=3!AA184=] *

Term# B1 / Label P+1 (Check) [=3!AA185=] *

Term# B2 / Label DB1 (Check) [=3!AA186=] *

Term# U/T1 / Label U11 (Check) [=3!AA187=] *

Term# V/T2 / Label V11 (Check) [=3!AA188=] *

Term# W/T3 / Label W11 (Check) [=3!AA189=] *

Control circuit

Term# MP / Label NONE (Check) [=3!AH179=] *

Term# RP / Label NONE (Check) [=3!AH180=] *

Term# AC / Label NONE (Check) [=3!AH181=] *

Term# D+ / Label NONE (Check) [=3!AH182=] *

Term# D- / Label NONE (Check) [=3!AH183=] *

Term# P1 / Label P1 (Check) [=3!AH184=] *

Term# C1 / Label N2 (Check) [=3!AH185=] *

Term# P2 / Label NONE (Check) [=3!AH186=] *

Term# C2 / Label NONE (Check) [=3!AH187=] *

Term# AM / Label NONE (Check) [=3!AH188=] *

Term# AC / Label NONE (Check) [=3!AH189=] *

Term# A1 / Label NONE (Check) [=3!AH190=] *

Term# A2 / Label NONE (Check) [=3!AH191=] *

Term# V / Label NONE (Check) [=3!AH192=] *

Term# H1 / Label NONE (Check) [=3!AH193=] *

Term# H2 / Label NONE (Check) [=3!AH194=] *

Term# HC / Label NONE (Check) [=3!AH195=] *

Term# PS / Label NONE (Check) [=3!AH196=] *

Term# S1 / Label FRD (Check) [=3!AH197=] *

Term# S2 / Label REV (Check) [=3!AH198=] *

Term# S3 / Label X1 (Check) [=3!AH199=] *

Term# S4 / Label X2 (Check) [=3!AH200=] *

Term# S5 / Label X3 (Check) [=3!AH201=] *

Term# S6 / Label RST (Check) [=3!AH202=] *

Term# S7 / Label NONE (Check) [=3!AH203=] *

Term# SN / Label NONE (Check) [=3!AH204=] *

Term# SC / Label N2 (Check) [=3!AH205=] *

Term# SP / Label NONE (Check) [=3!AH206=] *

Term# MA / Label NONE (Check) [=3!AH207=] *

Term# MB / Label 00005 (Check) [=3!AH208=] *

Term# MC / Label P2 (Check) [=3!AH209=] *

1-9. KA11, KA12, KA14

Term# 1 / Label NONE (Check) [=3!Q223=] *

Term# 2 / Label Jumper to 4 (Check) [=3!Q224=] *

Term# 3 / Label Jumper 4 (Check) [=3!Q225=] *

Term# 4 / Label N2 (Check) [=3!Q226=] *

Term# 5 / Label NONE (Check) [=3!Q227=] *

Term# 6 / Label KA14 (Check) [=3!Q228=] *

Term# 7 / Label KA12 (Check) [=3!Q229=] *

Term# 8 / Label KA11 (Check) [=3!Q230=] *

Term# 9 / Label NONE (Check) [=3!Q231=] *

Term# 10 / Label YV305B (Check) [=3!Q232=] *

Term# 11 / Label KM5A (Check) [=3!Q233=] *

Term# 12 / Label YV700B (Check) [=3!Q234=] *

Term# 13 / Label NONE (Check) [=3!Q235=] *

Term# 14 / Label Jumper to 16 (Check) [=3!Q236=] *

Term# 15 / Label SFT (Check) [=3!Q237=] *

Term# 16 / Label P2 (Check) [=3!Q238=] *

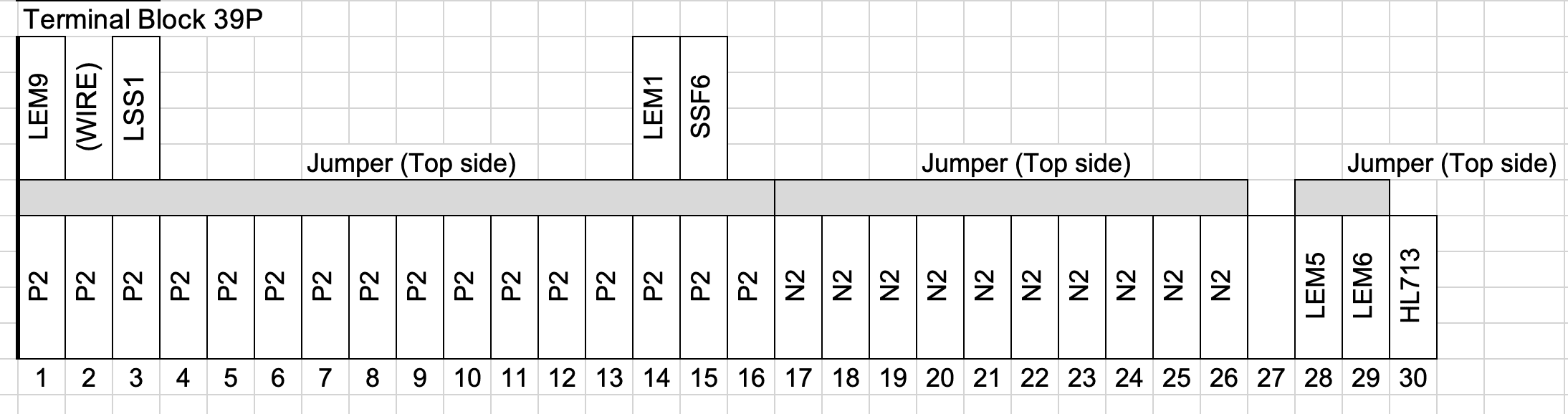

1-10. XT24

Terminal Block 39P

LEM9 (Check) [=3!C254=] *

(WIRE) (Check) [=3!D254=] *

LSS1 (Check) [=3!E254=] *

1 - P2 (Check) [=3!C268=] *

2 - P2 (Check) [=3!D268=] *

3 - P2 (Check) [=3!E268=] *

4 - P2 (Check) [=3!F268=] *

5 - P2 (Check) [=3!G268=] *

6 - P2 (Check) [=3!H268=] *

7 - P2 (Check) [=3!I268=] *

8 - P2 (Check) [=3!J268=] *

9 - P2 (Check) [=3!K268=] *

10 - P2 (Check) [=3!L268=] *

11 - P2 (Check) [=3!M268=] *

12 - P2 (Check) [=3!N268=] *

13 - P2 (Check) [=3!O268=] *

14 - P2 (Check) [=3!P268=] *

15 - P2 (Check) [=3!Q268=] *

16 - P2 (Check) [=3!R268=] *

17 - N2 (Check) [=3!S268=] *

18 - N2 (Check) [=3!T268=] *

19 - N2 (Check) [=3!U268=] *

20 - N2 (Check) [=3!V268=] *

21 - N2 (Check) [=3!W268=] *

22 - N2 (Check) [=3!X268=] *

23 - N2 (Check) [=3!Y268=] *

24 - N2 (Check) [=3!Z268=] *

25 - N2 (Check) [=3!AA268=] *

26 - N2 (Check) [=3!AB268=] *

27 - NONE (Check) [=3!AC268=] *

28 - LEM5 (Check) [=3!AD268=] *

29 - LEM6 (Check) [=3!AE268=] *

30 - HL713 (Check) [=3!AF268=] *

31 - HL712 (Check) [=3!C278=] *

32 - LOU2 (Check) [=3!D278=] *

33 - 00115 (Check) [=3!E278=] *

34 - NONE (Check) [=3!F278=] *

35 - LIN2 (Check) [=3!G278=] *

36 - 00311 (Check) [=3!H278=] *

37 - SB713 (Check) [=3!I278=] *

38 - SB752 (Check) [=3!J278=] *

39 - SB712 (Check) [=3!K278=] *

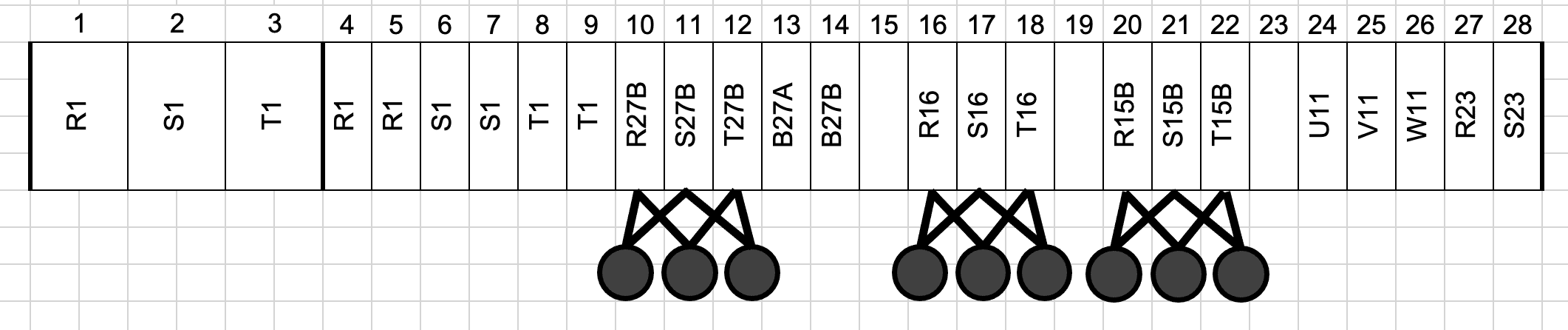

1-11. XT23

Terminal Block 39P

1 - R1 (Check) [=3!C301=] *

2 - S1 (Check) [=3!E301=] *

3 - T1 (Check) [=3!G301=] *

4 - R1 (Check) [=3!I301=] *

R1 - 5 (Check) [=3!J301=] *

6 - S1 (Check) [=3!K301=] *

7 - S1 (Check) [=3!L301=] *

8 - T1 (Check) [=3!M301=] *

9 - T1 (Check) [=3!N301=] *

10 - R27B (Check) [=3!O301=] *

11 - S27B (Check) [=3!P301=] *

12 - T27B (Check) [=3!Q301=] *

13 - B27A (Check) [=3!R301=] *

14 - B27B (Check) [=3!S301=] *

15 - NONE- (Check) [=3!T301=] *

16 - R16 (Check) [=3!U301=]

17 - S16 (Check) [=3!V301=] *

18 - T16 (Check) [=3!W301=] *

19 - NONE (Check) [=3!X301=] *

20 - R15B (Check) [=3!Y301=] *

21 - S15B (Check) [=3!Z301=] *

22 - T15B (Check) [=3!AA301=] *

23 - NONE (Check) [=3!AB301=] *

24 - U11 (Check) [=3!AC301=] *

25 - V11 (Check) [=3!AD301=] *

26 - W11 (Check) [=3!AE301=] *

27 - R23 (Check) [=3!AF301=] *

28 - S23 (Check) [=3!AG301=] *

1-12. XT25

1 - P2 (Check) [=3!C313=] *

2 - N2 (Check) [=3!D313=] *

3 - SQ7A (Check) [=3!E313=] *

4 - OSSD7 (Check) [=3!F313=] *

5 - SQ8A (Check) [=3!G313=] *

6 - OSSD8 (Check) [=3!H313=] *

7 - RES3 (Check) [=3!I313=] *

8 - EDM3 (Check [=3!J313=] *

9 - PE (Check) [=3!K313=] *

10 - P2 (Check) [=3!L313=] *

11 - N2 (Check) [=3!M313=] *

12 - PE (Check) [=3!N313=] *

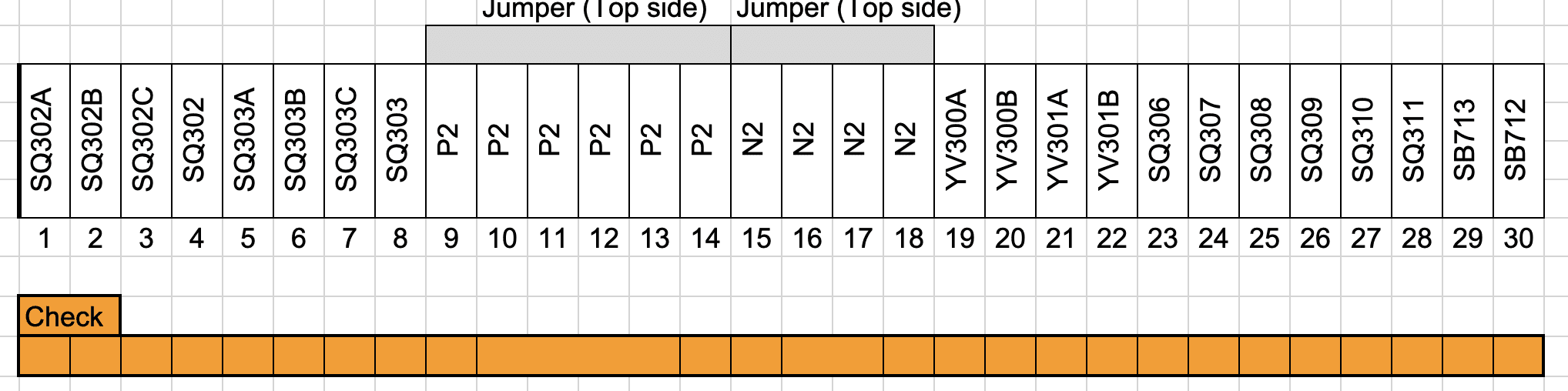

1-12. TB1

Terminal Block 39P

1 - SQ302A (Check) [=3!C333=] *

2 - SQ302B (Check) [=3!D333=] *

3 - SQ302C (Check) [=3!E333=] *

4 - SQ302 (Check) [=3!F333=] *

5 - SQ303A (Check) [=3!G333=] *

6 - SQ303B (Check) [=3!H333=] *

7 - SQ303C (Check) [=3!I333=] *

8 - SQ303 (Check) [=3!J333=] *

9 - P2 (Check) [=3!K333=] *

10 - P2 (Check) [=3!L333=] *

11 - P2 (Check) [=3!M333=] *

12 - P2 (Check) [=3!N333=] *

13 - P2 (Check) [=3!O333=] *

14 - P2 (Check) [=3!P333=] *

15 - N2 (Check) [=3!Q333=] *

16 - N2 (Check) [=3!R333=] *

17 - N2 (Check) [=3!S333=] *

18 - N2 (Check) [=3!T333=] *

19 - YV300A (Check) [=3!U333=] *

20 - YV300B (Check) [=3!V333=] *

21 - YV301A (Check) [=3!W333=] *

22 - YV301B (Check) [=3!X333=] *

23 - SQ306 (Check) [=3!Y333=] *

24 - SQ307 (Check) [=3!Z333=] *

25 - SQ308 (Check) [=3!AA333=] *

26 - SQ309 (Check) [=3!AB333=] *

27 - SQ310 (Check) [=3!AC333=] *

28 - SQ311 (Check) [=3!AD333=] *

29 - SB713 (Check) [=3!AE333=] *

30 - SB712 (Check) [=3!AF333=] *

1-13. XT-SFT

.

31 - HL712 (Check) [=3!C345=] *

32 - HL713 (Check) [=3!D345=] *

33 - LEM7 (Check) [=3!E345=] *

34 - LEM7A (Check) [=3!F345=] *

35 - LEM9 (Check) [=3!G345=] *

36 - LEM9A (Check) [=3!H345=] *

1 - Verify based on image (Check) [=3!M339=] *

2 - Verify based on image (Check) [=3!M342=] *

3 - Verify based on image (Check) [=3!M345=] *

4 - Verify based on image (Check) [=3!M346=] *

5 - Verify based on image (Check) [=3!M347=] *

6 - Verify based on image (Check) [=3!M350=] *

7 - Verify based on image (Check) [=3!P339=] *

8 - Verify based on image (Check) [=3!P342=] *

9 - Verify based on image (Check) [=3!P345=] *

10 - Verify based on image (Check) [=3!P346=] *

11 - Verify based on image (Check) [=3!P347=] *

12 - Verify based on image (Check) [=3!P350=] *

LST Control Panel Inspection Sheet (Visual Check 3)

Ver.21.2

1-12. Check point

1. Each device label correctly (Pasted to each device, ex. QF2A, KA8, rtc…). [=4!AD7=] *

2. Fork terminal inserted completely. [=4!AD8=] *

3. No short-circuit between plus and minus of the DC24V line (To measure resistance by tester). [=4!AD9=] *

4. AC power line wiring correctly (To inspect AC power line by tester). [=4!AD10=] *

5. No loosening in the terminal of each electrical devices. [=4!AD11=] *

6. No loosening the all screws that attach each electrical devices. [=4!AD12=] *

7. Torque marking on each screws. [=4!AD13=] *

8. Using washer and spring washer to all screw that attached electrical devices, brackets and panels. [=4!AD14=] *

9. Using black color screw to main cabinet screws. [=4!AD15=] *

10. Devices are not damaged. [=4!AD16=] *

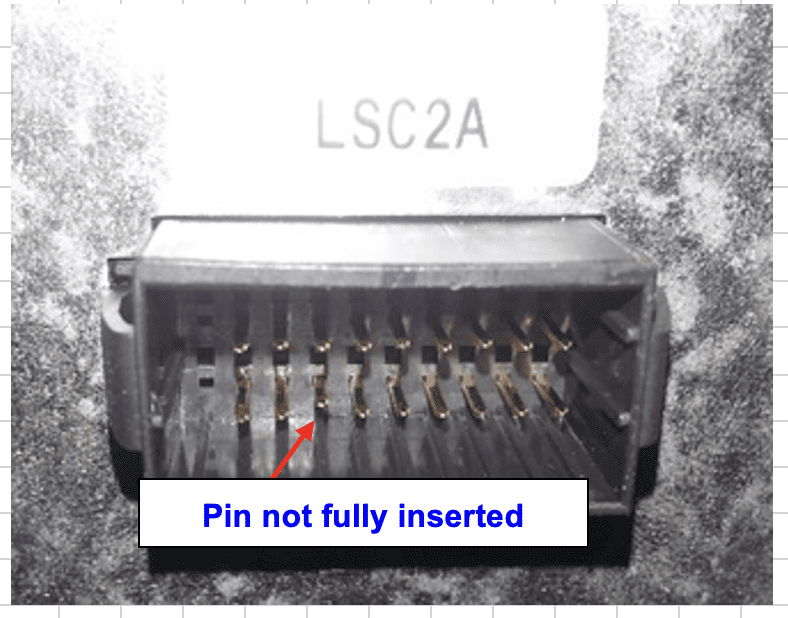

11. Check pins of all AMP connectors are fully inserted by checking the front using light. [=4!AD17=] *

12. Check all pins are in line in rows. Adjust with a screwdriver if necessary. [=4!AD18=] *

13. Brake resistor installed with extended wire. [=4!AD19=] *

14. Wire duct cover is not overhanging duct. [=4!AD20=] *

15. Wire harness sleeve should be installed into duct as much as possible. [=4!AD21=] *

16. Check PLC1 rack that all latches are in the locked position and no space inbetween modules. [=4!AD22=] *

LST Control Panel Inspection Sheet (Visual Check 4)

Ver.21.2

2. Inspection for previous issue

2.1 Soldering inspection for PLC input /output connector

※Check point : Correct label soldering to correct pin, No short-circuit each pins.

001CH

Pin# 0 / Label SQ310 (Check) [=5!J12=] *

Pin# 1 / Label SQ311 (Check) [=5!J13=] *

Pin# 2 / Label SQ307 (Check) [=5!J14=] *

Pin# 3 / Label SQ308 (Check) [=5!J15=] *

Pin# 4 / Label SQ309 (Check) [=5!J16=] *

Pin# 5 / Label SQ306 (Check) [=5!J17=] *

Pin# 6 / Label SQ314 (Check) [=5!J18=] *

Pin# 7 / Label SQ315 (Check) [=5!J19=] *

Pin# 8 / Label SQ700 (Check) [=5!J20=] *

Pin# 9 / Label SQ302 (Check) [=5!J21=] *

Pin# 10 / Label SQ701 (Check) [=5!J22=] *

Pin# 11 / Label SQ702 (Check) [=5!J23=] *

Pin# 12 / Label SQ703 (Check) [=5!J24=] *

Pin# 13 / Label SQ704 (Check) [=5!J25=] *

Pin# 14 / Label SQ705 (Check) [=5!J26=] *

Pin# 15 / Label 00115 (PANEL) (Check) [=5!J27=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!J28=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!J29=] *

002CH

Pin# 0 / Label SB752 (PANEL) (Check) [=5!X12=] *

Pin# 1 / Label SB700 (Check) [=5!X13=] *

Pin# 2 / Label SB701 (Check) [=5!X14=] *

Pin# 3 / Label SB702 (Check) [=5!X15=] *

Pin# 4 / Label SB703 (Check) [=5!X16=] *

Pin# 5/ Label SB704 (Check) [=5!X17=] *

Pin# 6 Label SB705 (Check) [=5!X18=] *

Pin# 7 / Label SB706 (Check) [=5!X19=] *

Pin# 8 / Label SB712 (PANEL) (Check) [=5!X20=] *

Pin# 9 / Label SB713 (PANEL) (Check) [=5!X21=] *

Pin# 10 / Label SB714 (SPARE) (Check) [=5!X22=] *

Pin# 11 / Label SB710 (Check) [=5!X23=] *

Pin# 12 / Label SB711 (Check) [=5!X24=] *

Pin# 13 / Label SB712 (Check) [=5!X25=] *

Pin# 14 / Label SB713 (Check) [=5!X26=] *

Pin# 15 / Label SB707(Check) [=5!X27=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!X28=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!X29=] *

2.1 Soldering inspection for PLC input /output connector

※Check point : Correct label soldering to correct pin, No short-circuit each pins.

003CH

Pin# 0 / Label SQ129B (Check) [=5!J45=] *

Pin# 1 / Label SQ128B (Check) [=5!J46=] *

Pin# 2 / Label SQ97 (Check) [=5!J47=] *

Pin# 3 / Label SQ98 (Check) [=5!J48=] *

Pin# 4 / Label SQ99 (Check) [=5!J49=] *

Pin# 5 / Label SQ100 (Check) [=5!J50=] *

Pin# 6 / Label SQ125 (Check) [=5!J51=] *

Pin# 7 / Label SQ126 (Check) [=5!J52=] *

Pin# 8 / Label SQ127 (Check) [=5!J53=] *

Pin# 9 / Label SQ128 (Check) [=5!J54=] *

Pin# 10 / Label SQ129 (Check) [=5!J55=] *

Pin# 11 / Label 0311 (PANEL) (Check) [=5!J56=] *

Pin# 12 / Label SQ112 (Check) [=5!J57=] *

Pin# 13 / Label SQ113 (Check) [=5!J58=] *

Pin# 14 / Label 00314 (PANEL) (Check) [=5!J59=] *

Pin# 15 / Label 00315 (PANEL) (Check) [=5!J60=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!J61=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!J62=] *

004CH

Pin# 0 / Label LOU4 (Check) [=5!X45=] *

Pin# 1 / Label LOU5 (Check) [=5!X46=] *

Pin# 2 / Label LOU6 (Check) [=5!X47=] *

Pin# 3 / Label LOU7 (Check) [=5!X48=] *

Pin# 4 / Label LOU8 (Check) [=5!X49=] *

Pin# 5 / Label LOU9 (Check) [=5!X50=] *

Pin# 6 / Label LOU10 (Check) [=5!X51=] *

Pin# 7 / Label LOU11 (Check) [=5!X52=] *

Pin# 8 / Label LOU12 (Check) [=5!X53=] *

Pin# 9 / Label LOU13 (Check) [=5!X54=] *

Pin# 10 / Label LOU14 (Check) [=5!X55=] *

Pin# 11 / Label LOU15 (Check) [=5!X56=] *

Pin# 12 / Label LOU16 (Check) [=5!X57=] *

Pin# 13 / Label LOU17 (Check) [=5!X58=] *

Pin# 14 / Label LOU18 (Check) [=5!X59=] *

Pin# 15 / Label LOU19 (Check) [=5!X60=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!X61=] *

Pin# COM / Label N2 (PANEL) (Check) [=5!X62=] *

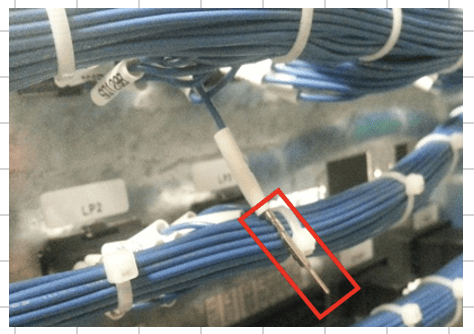

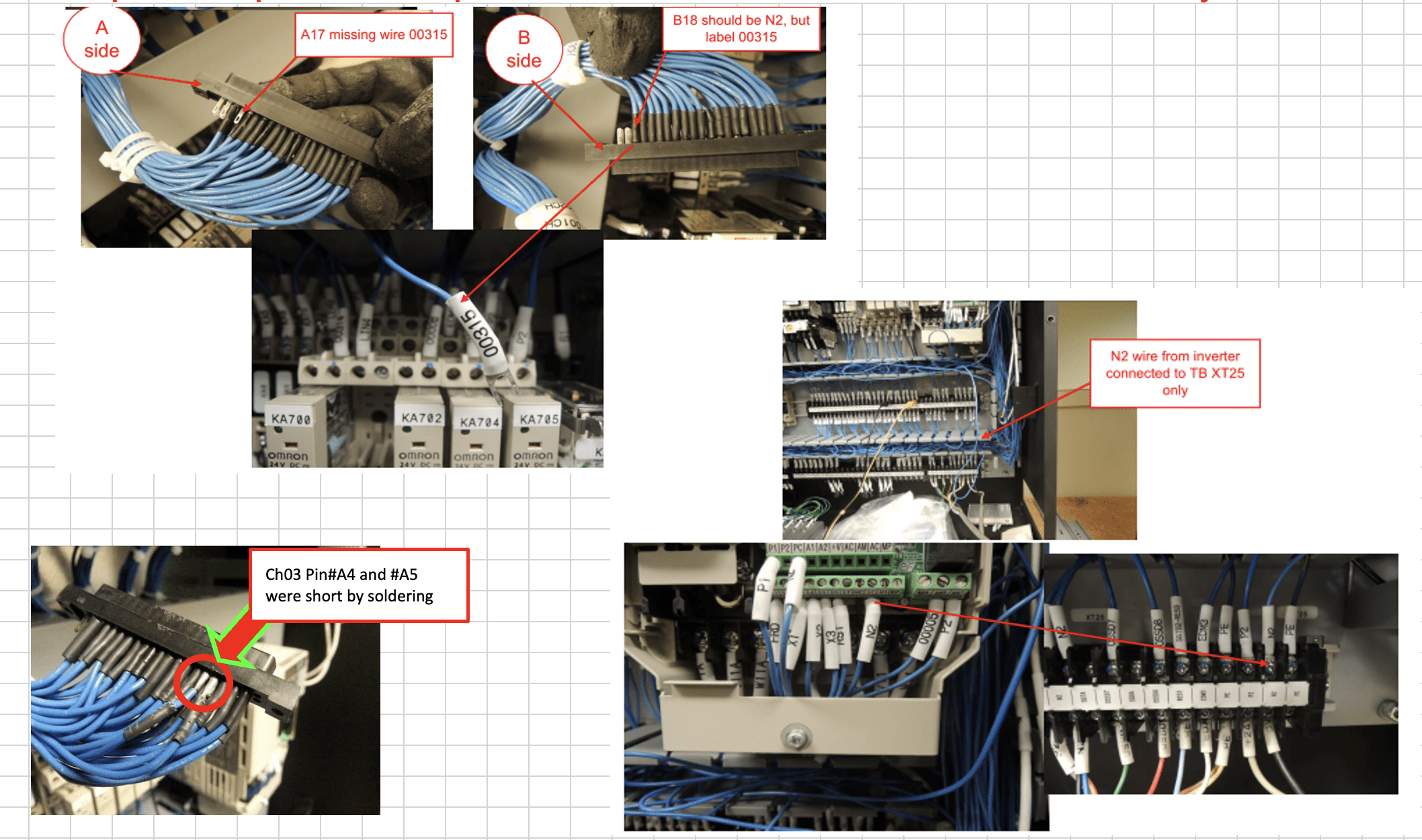

2-1. Soldering inspection for PLC input /output connector

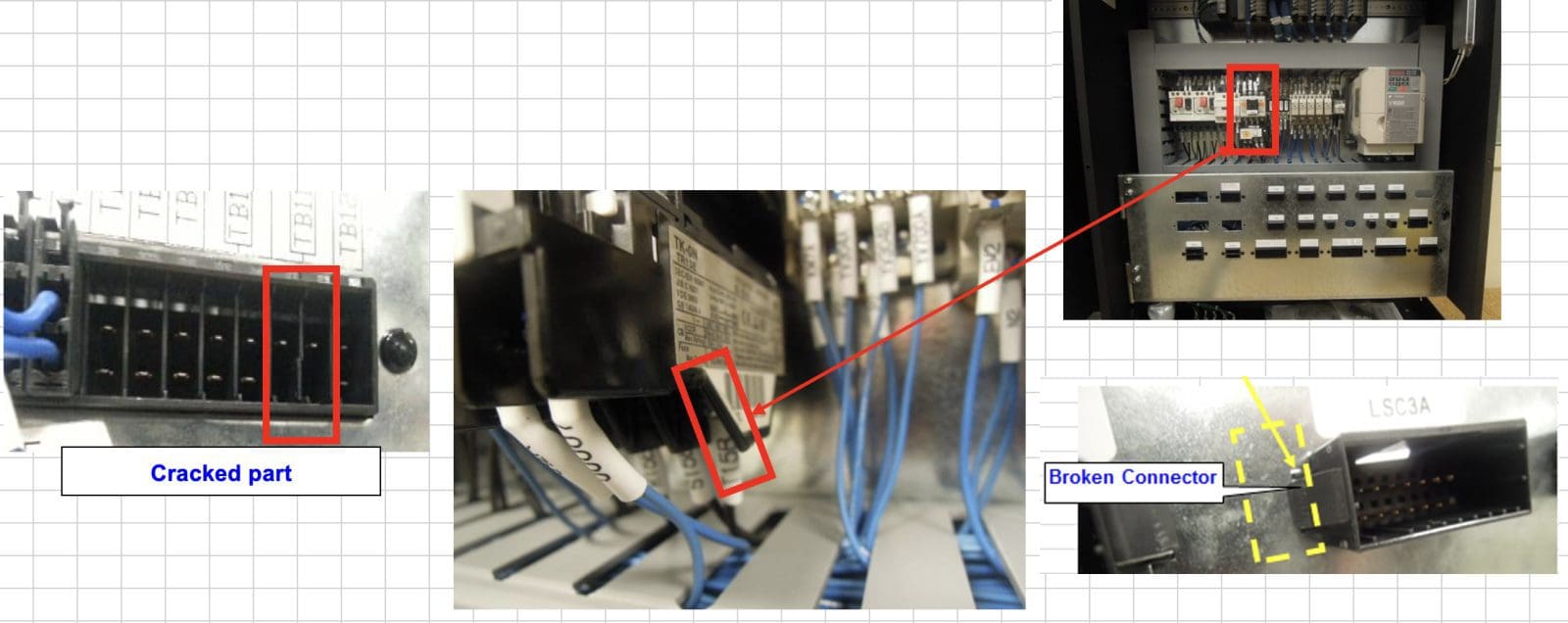

Below pictures are previous issue report from customer side. Please check below issue more carefully.

2-2. Jumpered terminal blocks

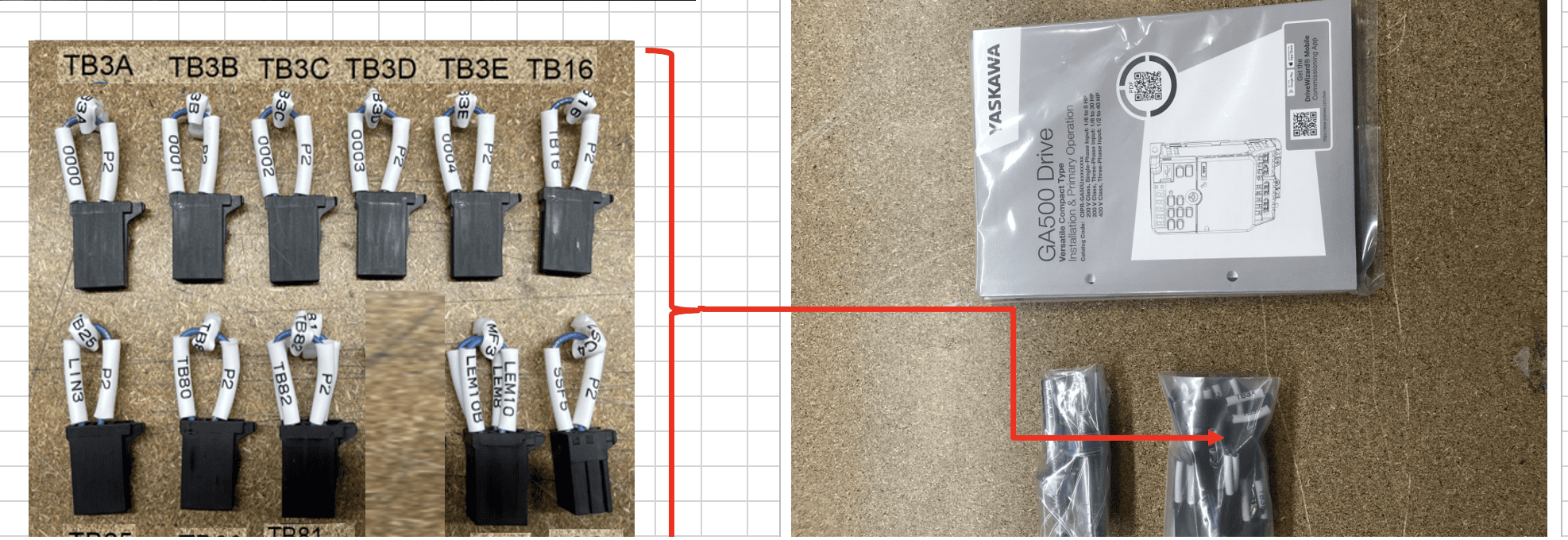

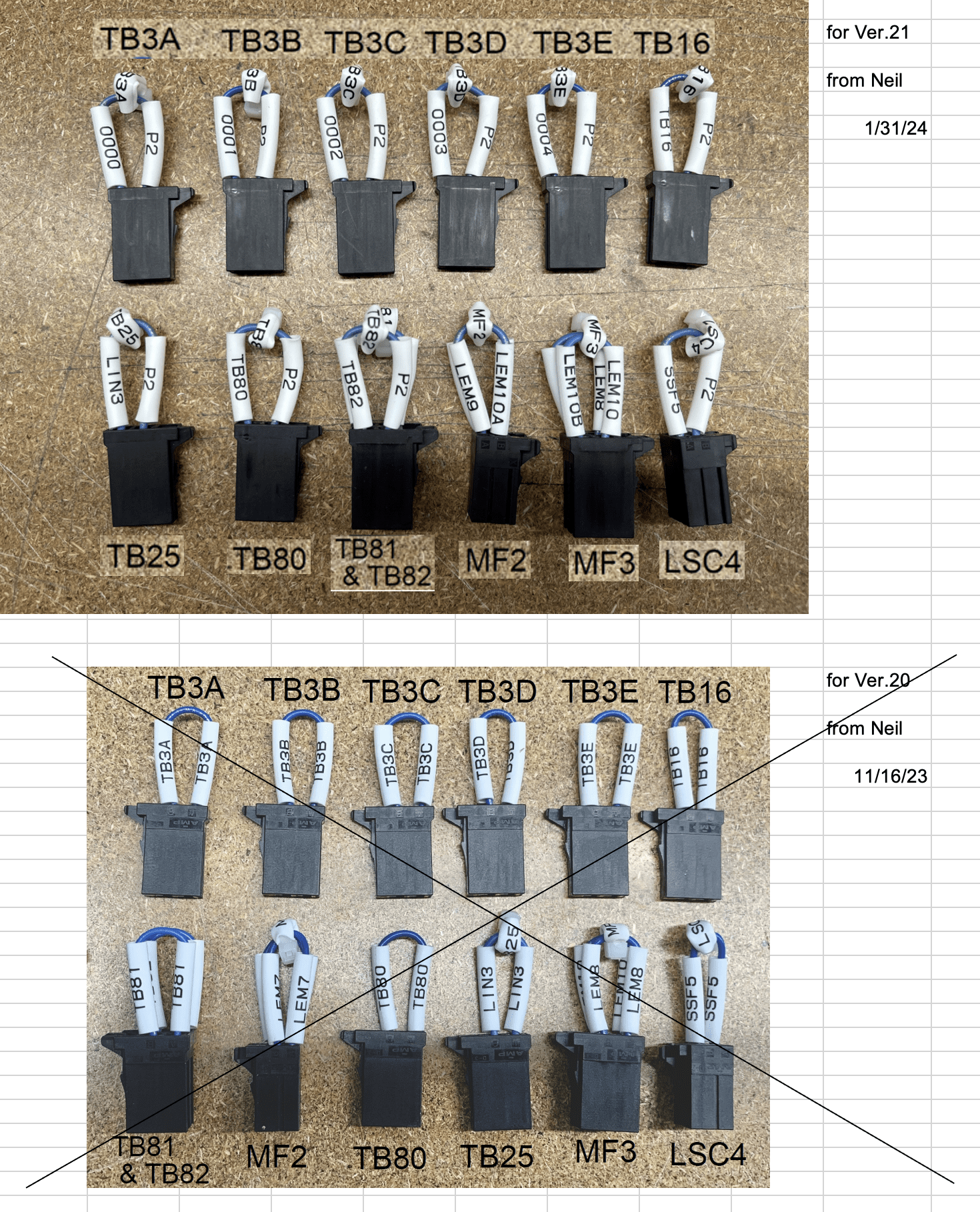

# 1 - Jumpered between "LEM7" and "LEM7A", "LEM9" and "LEM9A" of TB1? (Refer right side picture). (Check) [=5!V114=] *

# 2 - Jumpers in correct position P2 vs. N2 (Ref. RNC#09-58). (Check) [=5!V116=] *

# 3 - Torque mark on terminals for jumpers. (Check) [=5!V118=] *

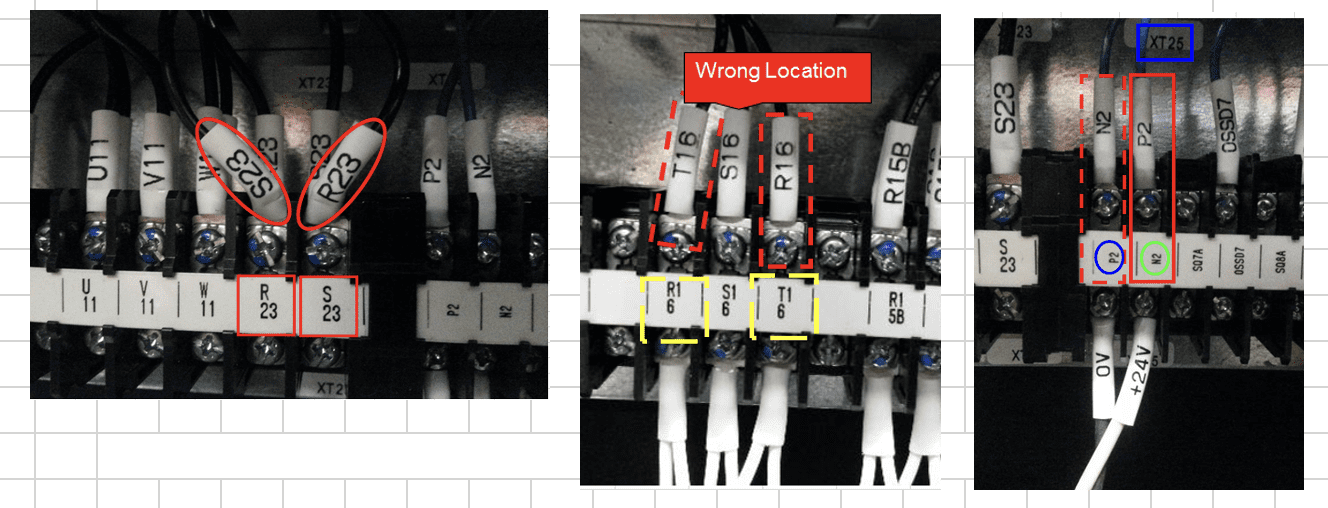

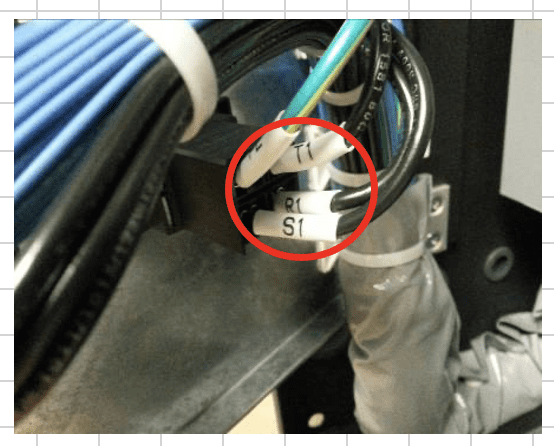

2-3. Wrong pin assignment

# 1 - Reversed power connection of TB1A S1 & T1, S1 should connect to pin#B1 and T1 should connect to pin#A2. (Check) [=5!V132=] *

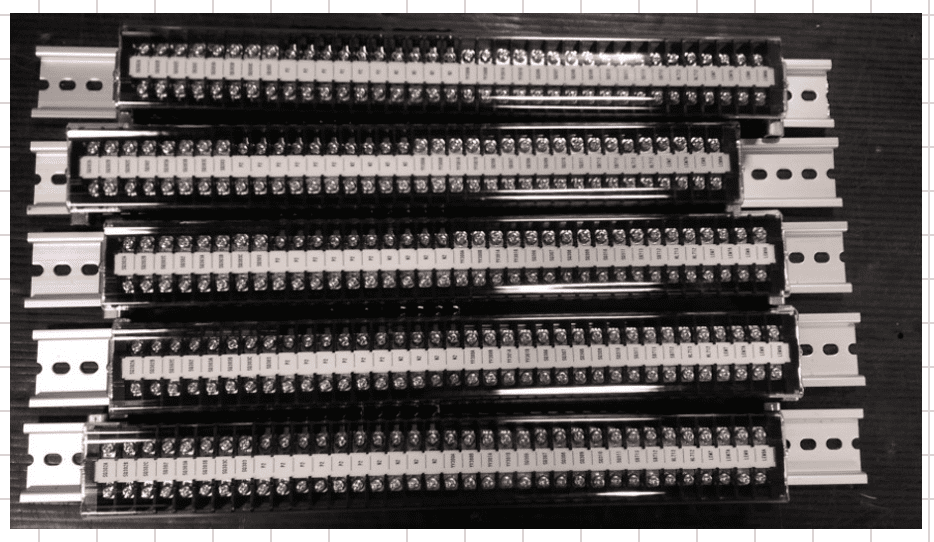

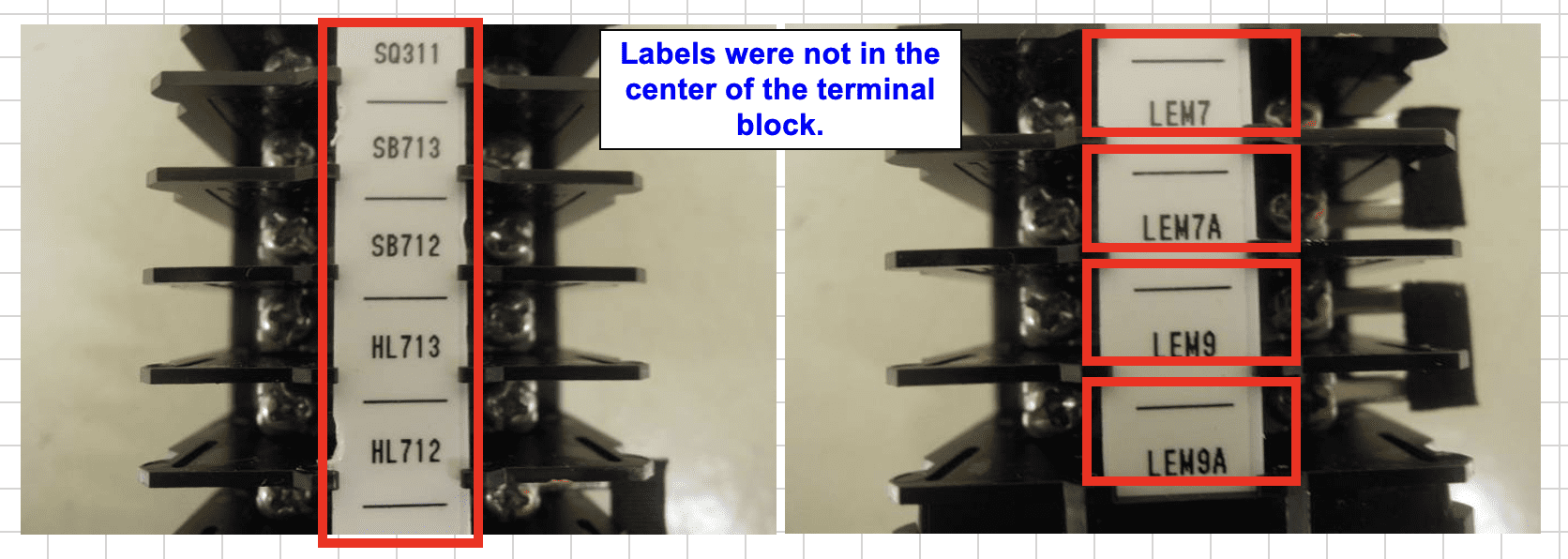

2-4. Terminal block labels

# 1 - Label is in the center of the all terminal blocks. (Check) [=5!V150=] *

2-4. Motor wires

# 1 - Motor wires are to correct terminal (Ref. RNC#09-52, RNC#11-25) (Check) [=5!V169=] *

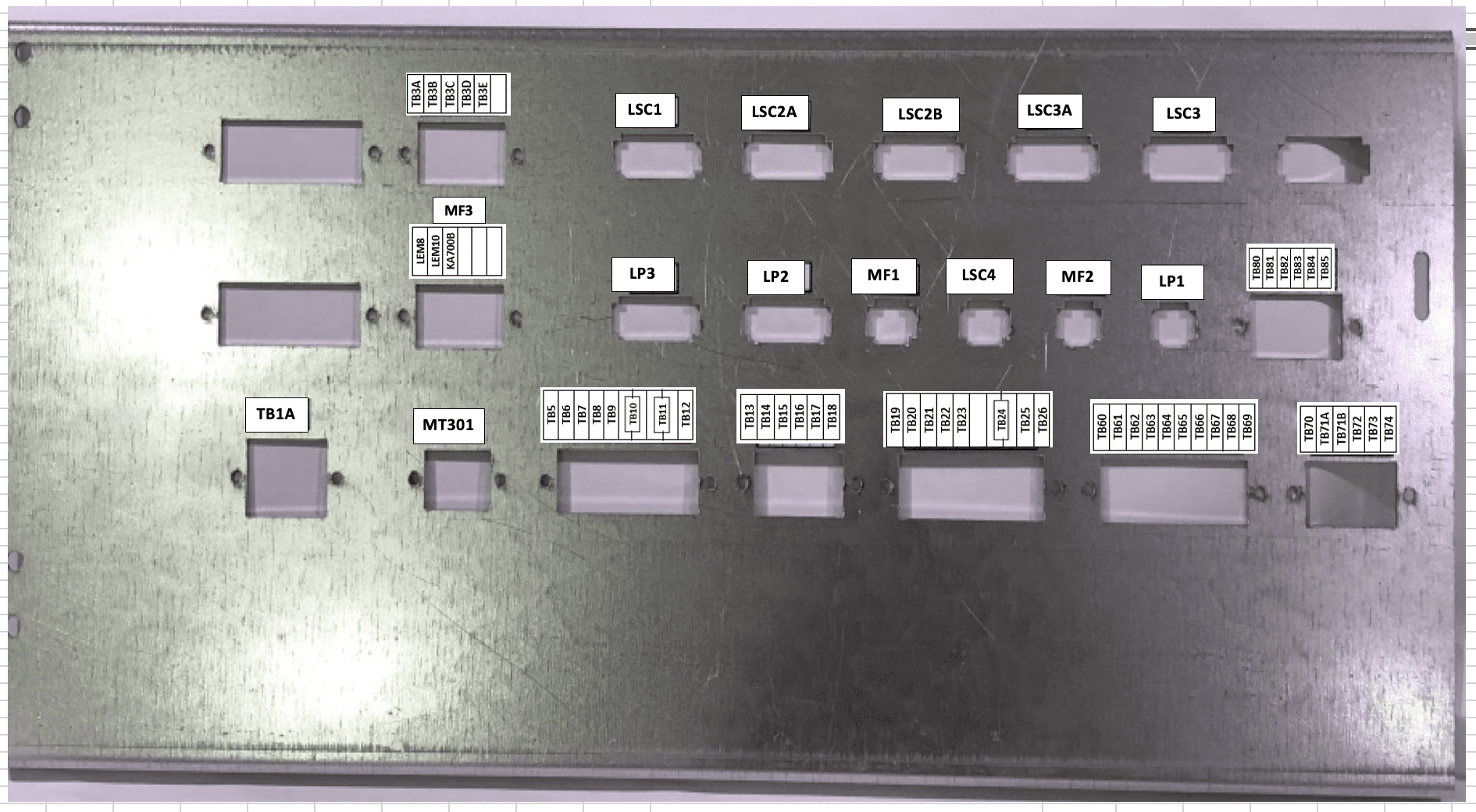

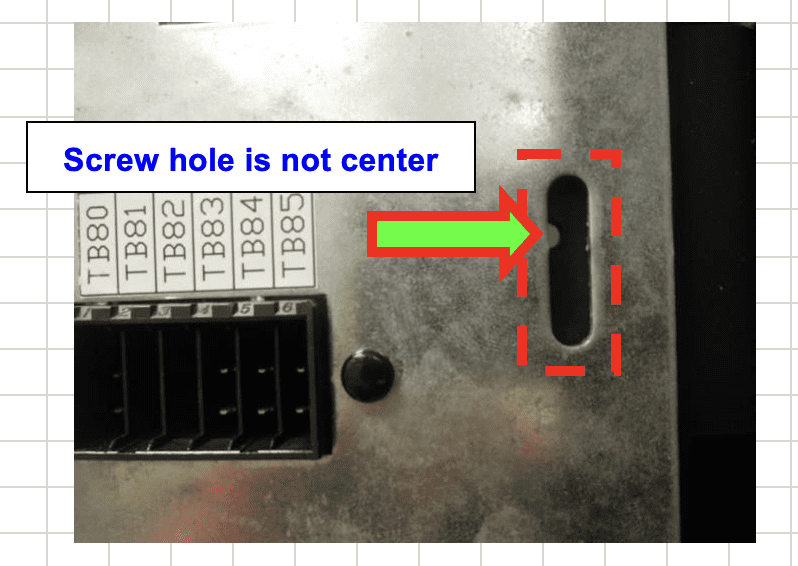

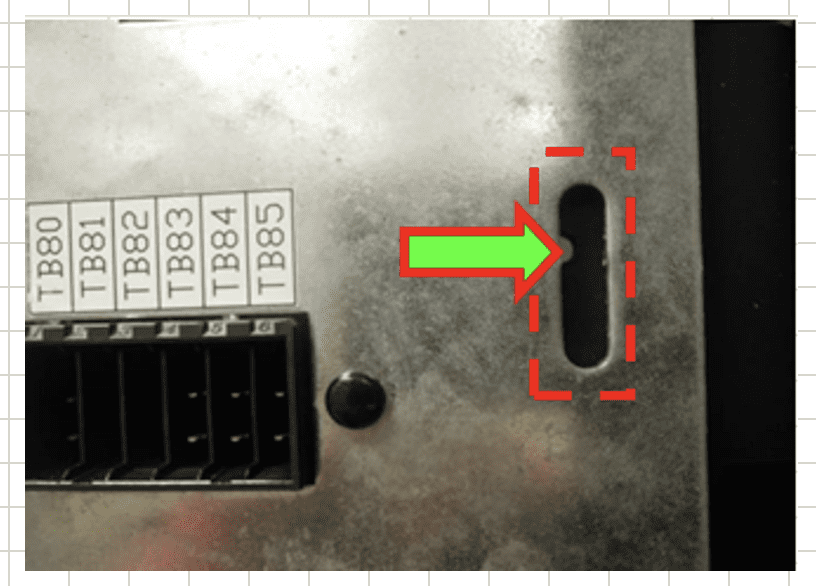

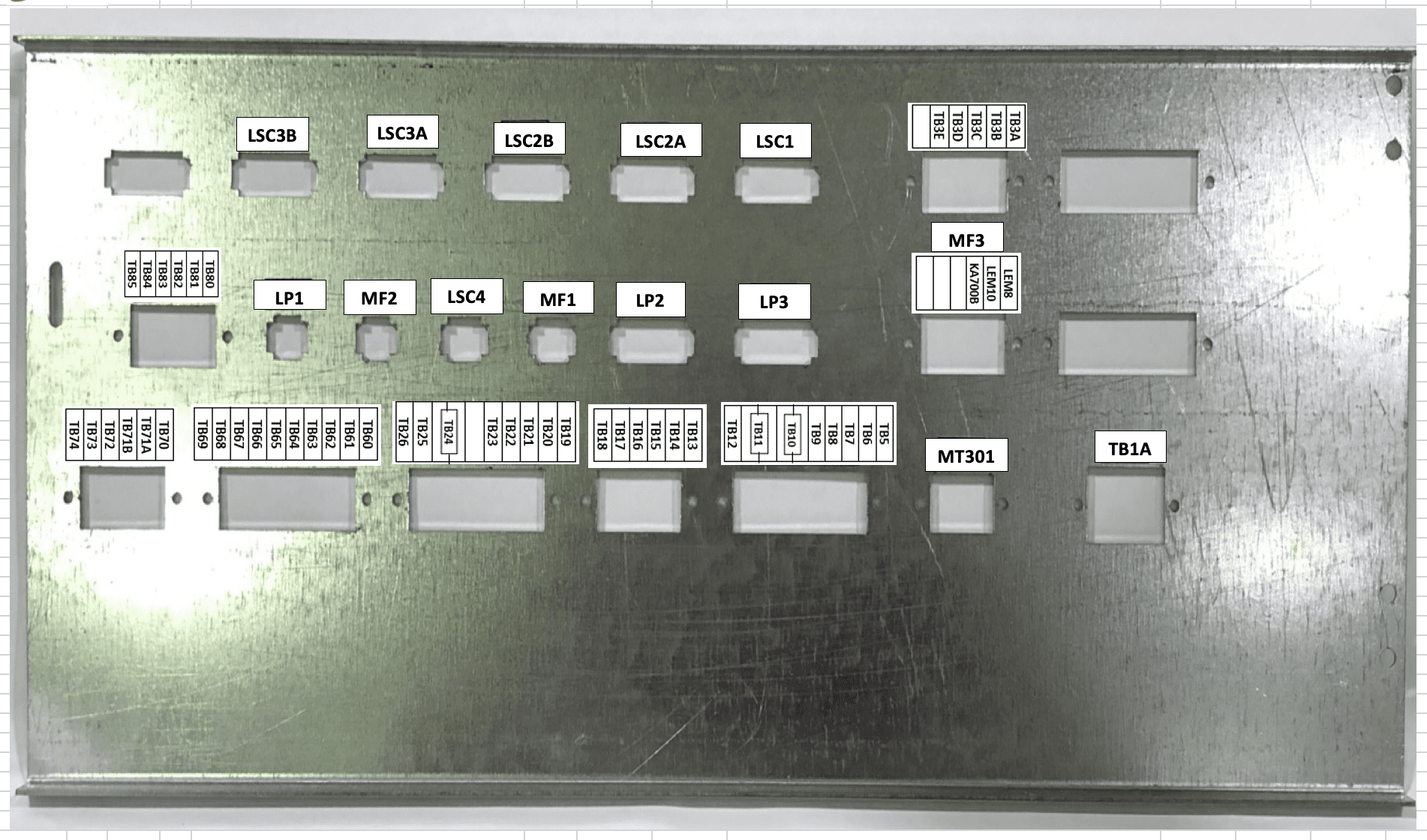

2-5. Connector panel fixed screw

# 1 - Can not tie the screw between connector panel and panel bracket. (Check) [=5!V186=] *

2-6. Equipment damage

# 1 - No damage the all equipment (RNC#08-22,08-40). (Check) [=5!V197=] *

2-7. Connector Pins

# 1 - Can not tie the screw between connector panel and panel bracket. (Ref. RNC#09-50) (Check) [=5!V222=] *

# 2 - Pull test pins for loose connection. (Ref. RNC#09-50) (Check) [=5!V224=] *

# 2 - Use flashlight to check pin alignment and insertion. (Check) [=5!V226=] *

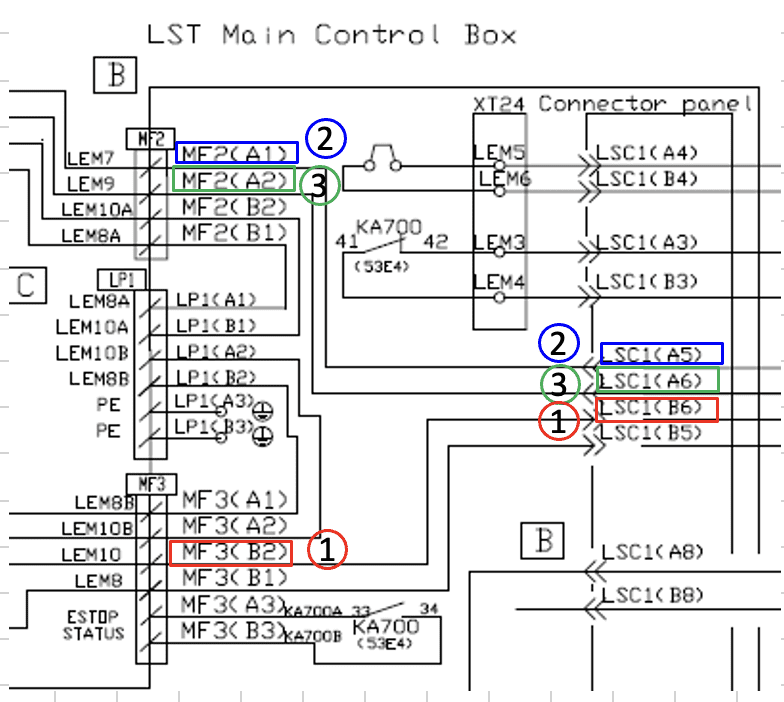

2-8. LSC1 Connection

# 1 - Check the connection at LSC1 to LP1 and MF2. (Check) [=5!V237=] *

Wire# LEM7 / Side A LSC1 (A5) / Side B MF2 (A1) (Check) [=5!Q241=] *

Wire# LEM9 / Side A LSC1 (A6) / Side B MF2 (A2) (Check) [=5!Q242=] *

Wire# LEM10 / Side A LSC1 (B6) / Side B MF3 (B2) (Check) [=5!Q243=] *

Wire# LEM8 / Side A LSC1 (B5) / Side B MF3 (B1) (Check) [=5!Q244=] *

2-9. Terminal Wiring

# 1 - Check that all labels match terminal label (Ref. RNC#09-52, RNC#11-25, RNC#09-49) (Check) [=5!V256=] *

# 2 - Check that there is a P2 wire present in relays as show. (Check) [=5!V271=] *

LST Control Panel Inspection Sheet (Front Panel Inspection)

# 1 - Check that all labels are on FRONT of the panel. (Check) [=6!L3=] *

LST Control Panel Inspection Sheet (Back Panel Inspection)

# 1 - Check that all labels are on BACK of the panel. (Check) [=7!K2=] *

LST Control Panel Inspection Sheet (Enclosure Inspection)

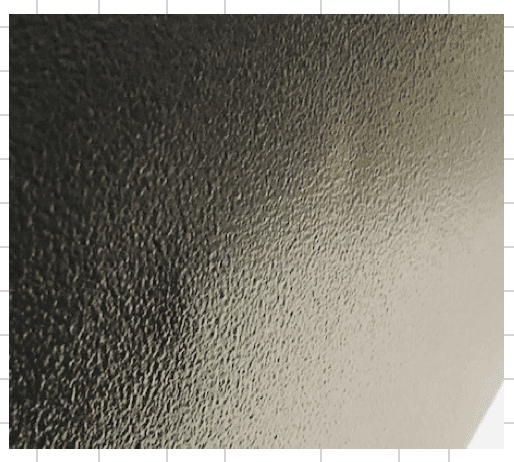

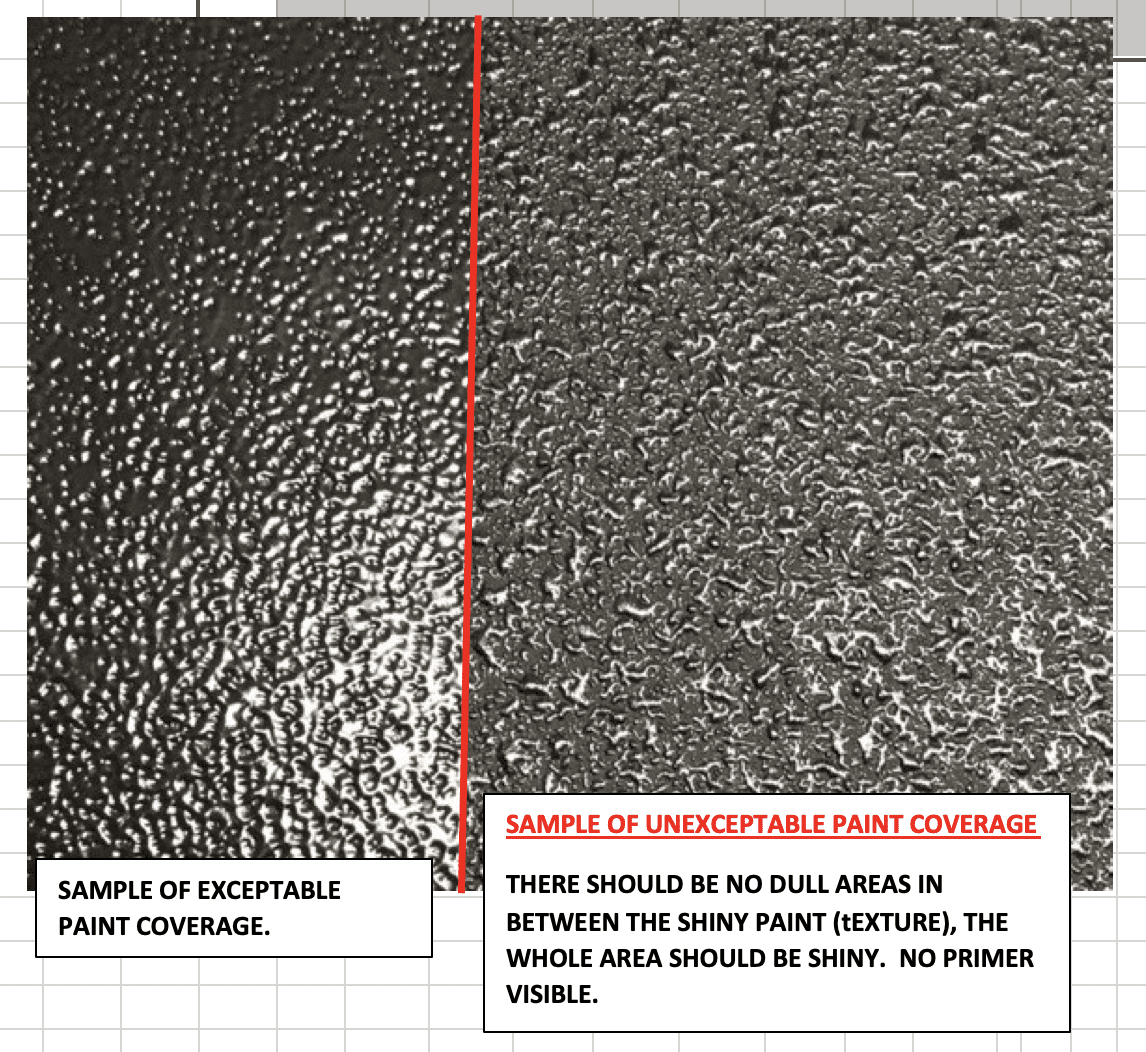

# 1 - Compare black paint texture on the paint sample received from Amada SEE NOTES ABOVE. (Check) [=8!O5=] *

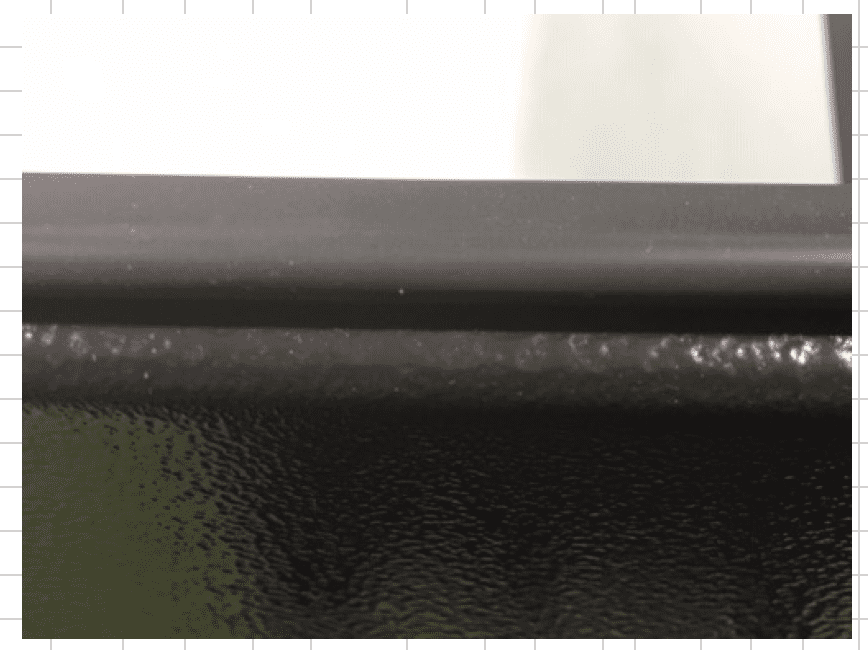

# 2 - Check that black paint goes over the edges of enclosure and no primer is visible. (Check) [=8!AE5=] *

# 3 - Check for dents in metal. (Check) [=8!AE23=] *

LST Control Panel Inspection Sheet (Physical, Settings, Cleaning)

3. Physical Inspection

# 1 - Torque all wired terminal terminal blocks and blue torque mark. (Check) [=9!AD7=] *

# 2 - Tighten down all terminals without wires, no torque mark. (Check) [=9!AD8=] *

# 3 - Pull test all wires (Check) [=9!AD9=] *

4. Settings

# 1 - DO NOT Set CPU dip switches (drawing says set 2, 3, 4 to on, not necessary). (Check) [=9!AD15=] *

# 2 - Make sure that all terminal anchors are set to pulled down, arrow pointing up, before tightening. (Check) [=9!AD16=] *

# 3 - Inverter Dip switch should be down for “source”. (Check) [=9!AD17=] *

# 4 - Set overloads

#4 Set overloads - Set QFA2 to 22Amps (Check) [=9!AD19=] *

#4 Set QF700 to 15Amps (Check) [=9!AD20=] *

#4 Set QF3A to 7Amps (Check) [=9!AD21=] *

5. Cleaning

# 1 - Blow air behind panel, on all components. (Check) [=9!AD27=] *

# 2 - Vacuum out all surfaces of inside panel. (Check) [=9!AD28=] *

# 3 - Remove top cover of the inverter after the panel has been vacuumed. (Check) [=9!AD29=] *

LST Control Panel Inspection Sheet (Install)

6. Install

# 1 - CPU battery label. (Check) [=10!AD7=] *

# 2 - LP1 and QX80 jumper in the front panel. (Check) [=10!AD8=] *

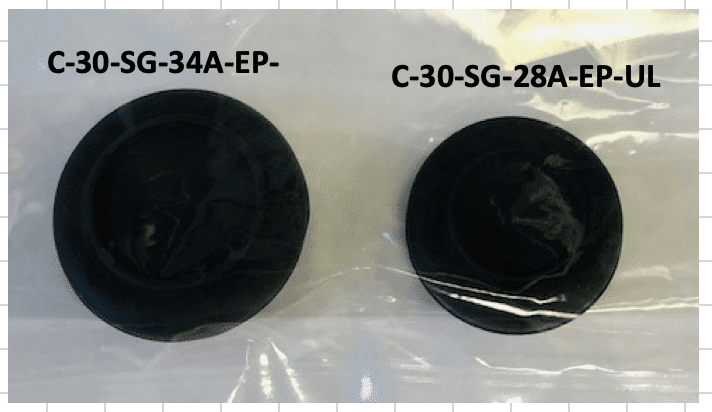

# 3 - Rubber Grommets. (Check) [=10!AD9=] *

# 4 - Terminal block covers. (Check) [=10!AD10=] *

# 5 - Inverter front cover. (Check) [=10!AD11=] *

# 6 - Front panel closed with white thumbscrew, tightened all the way. (Check) [=10!AD12=] *

# 7 - Install Tape over thumb screw. (Check) [=10!AD13=] *

# 8 - Cable tie front panel hinges so panel cannot slide up. (Check) [=10!AD14=] *

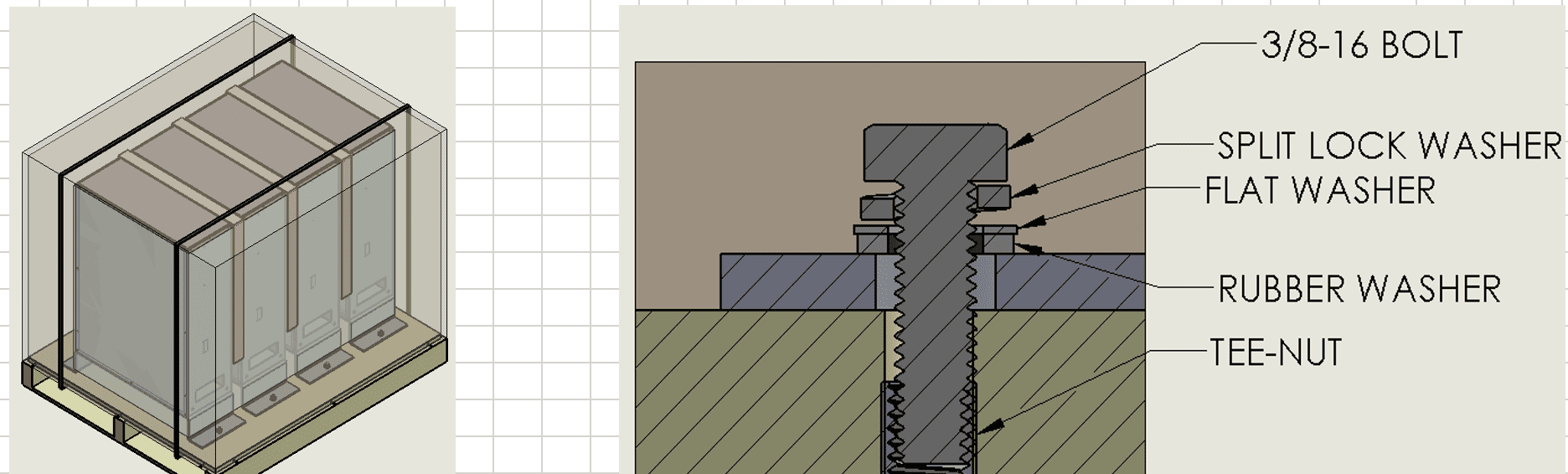

# 9 - Panel Anchors in a bag. (Check) [=10!AD15=] *

# 10 - Install Inverter paramaters using USB device and install procedure. (Check) [=10!AD16=] *

LST Control Panel Inspection Sheet (Use Tester)

7. Inspect by LST tester

How to use LST tester, please see "LST Test Panel Instructions.docx" document.

# 1 - "Inspection Main Circuit" method finished with no issue each step. (Check) [=11!AD9=] *

# 2 - "Inspection Connector" method finished with no error. (Check) [=11!AD10=] *

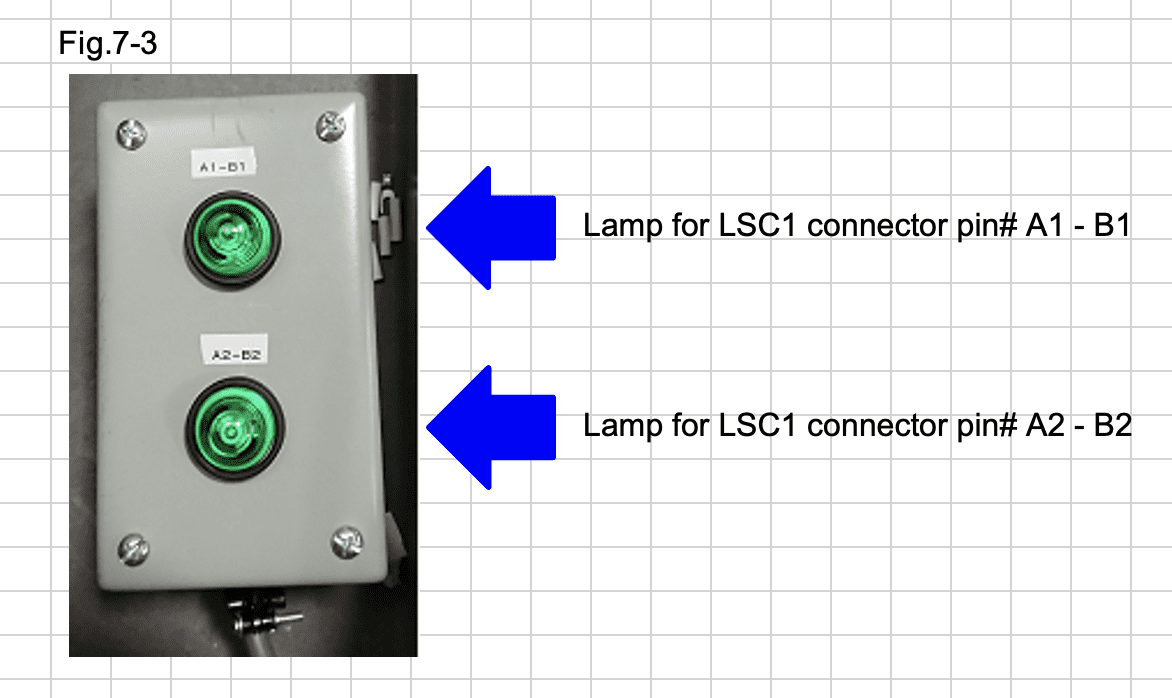

# 3 - Check two lamps lights up for LSC1 pin A1-B1, A2-B2 wirings.(Fig.7-3) (Check) [=11!AD11=] *

# 4 - If complete 1~3 inspection, please don't forget to replace inspection CPU to production CPU. If complete 1~3 inspection, please don't forget to replace inspection CPU to production CPU. Inspection CPU(CJ2M-CPU31) and production CPU(CJ2M-CPU33) looks very similar. (Fig7-4) (Check) [=11!AD12=] *
